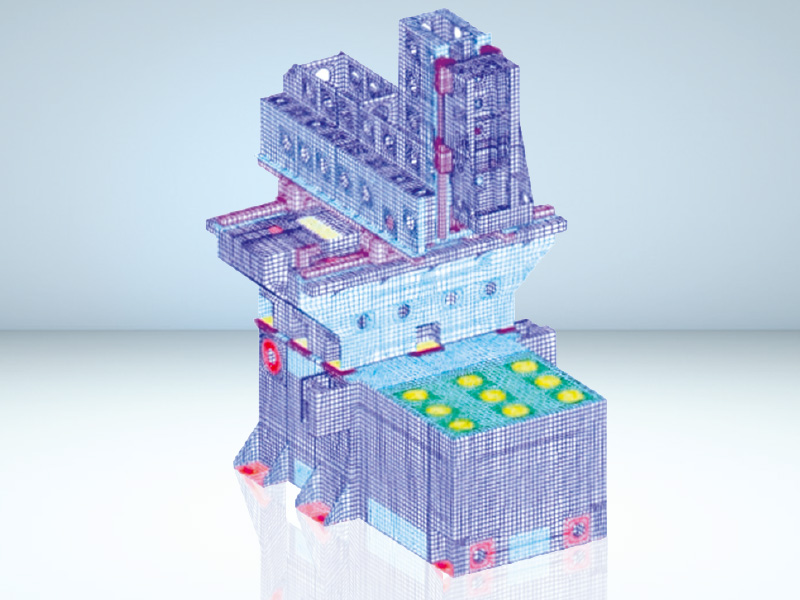

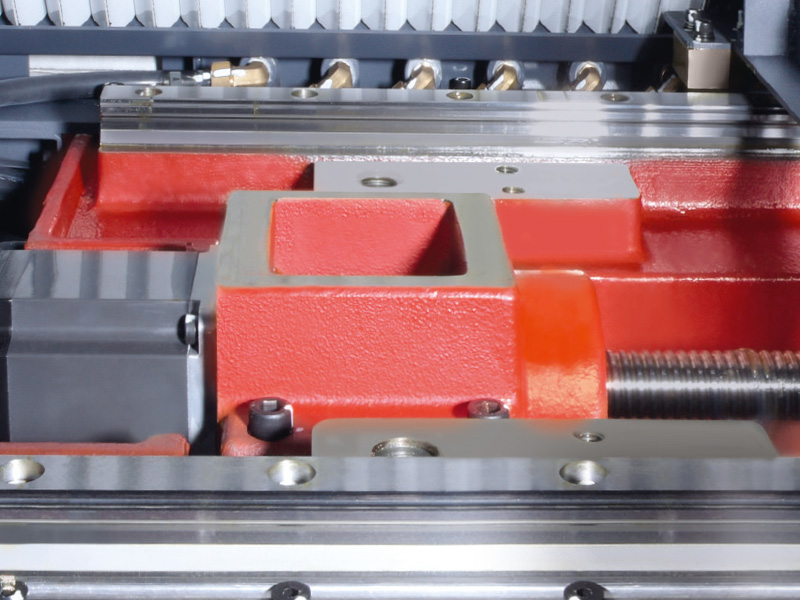

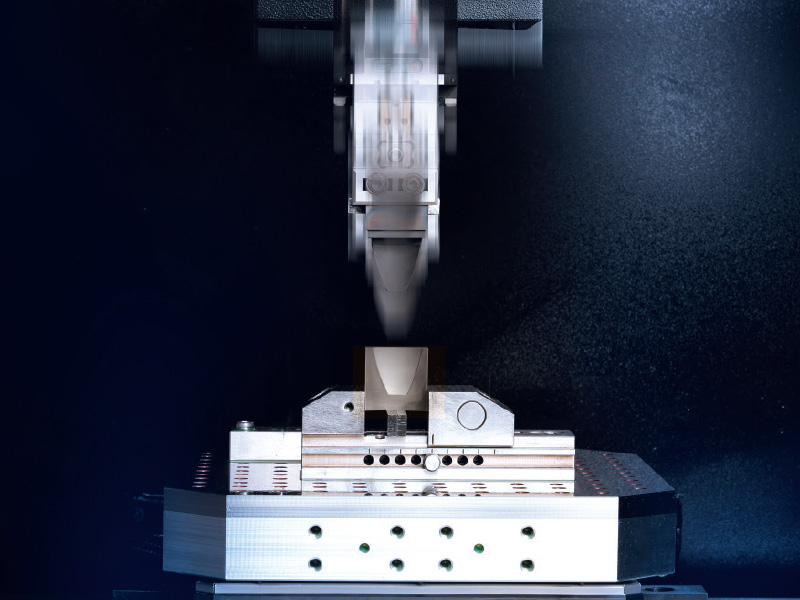

Der grundsolide Maschinenbau der SG-Serie ist der Garant für Präzision und Langlebigkeit. Die Verwendung bester Komponenten garantiert darüber hinaus die Zuverlässigkeit des Maschinensystems über ein langes Maschinenleben.

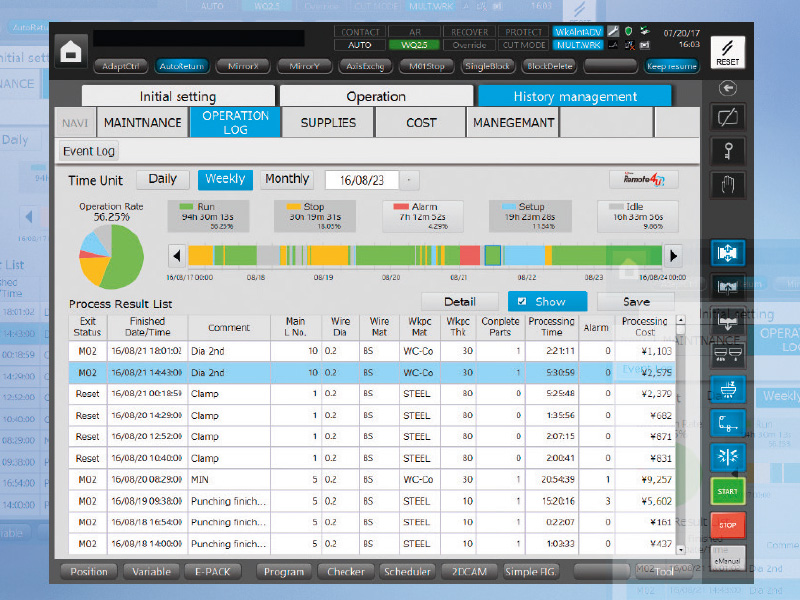

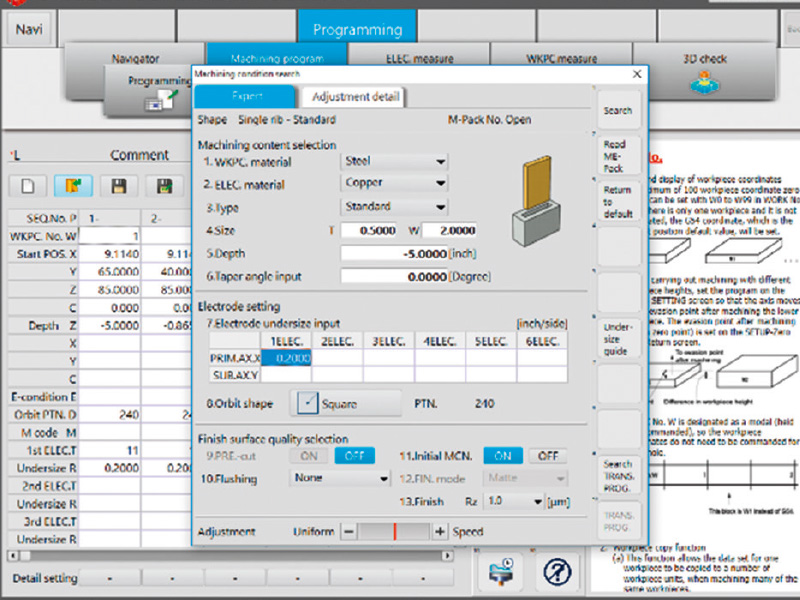

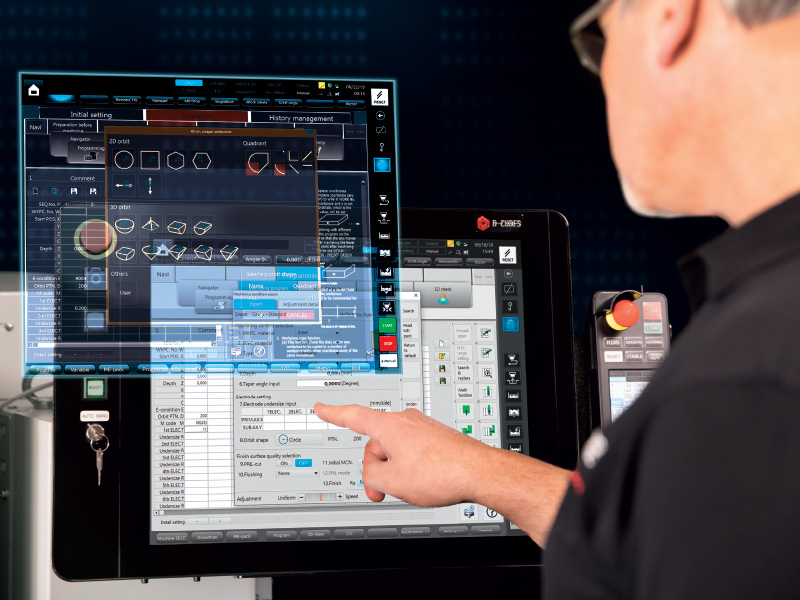

Die einfache Bedienung und Programmierung – ein Kennzeichen der Senkerodiersysteme von Mitsubishi Electric – lässt dem Bediener Zeit für das Wesentliche, nämlich die vernünftige Planung der verschiedenen Erodieraufgaben. Auch hier hilft die intelligente Steuerungsstrategie mit integrierter Auftragsplanung und einer effizienten Auswertung verschiedenster Betriebsdaten bis hin zur Nachkalkulation.

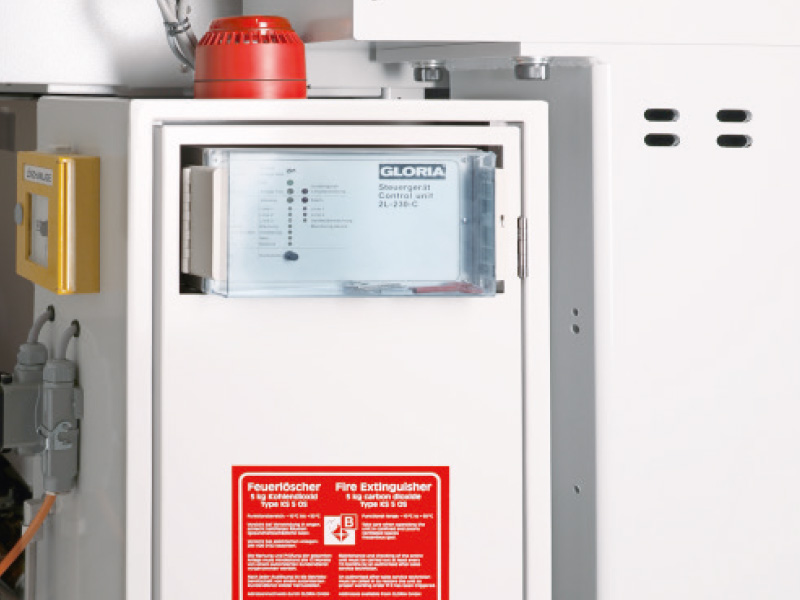

Die serienmäßige Ausstattung der SG-S rundet das Bild ab. Feuerlöschanlage und C-Achse mit Nullpunkt-Spannsystem sind im Standard-Lieferumfang der Maschine enthalten. Wenige, sinnvolle Zusatzausstattungen ermöglichen Ihnen die individuelle Abrundung des Gesamtlieferumfangs – zugeschnitten auf Ihre Bedürfnisse.
Willkommen zu unserer Schnellnavigation. Hier können Sie direkt ein Thema auswählen, das Sie besonders interessiert. Sie werden dann direkt zu diesem Thema weitergeleitet.
SG-R Series | X | Y | Z | |
---|---|---|---|---|
![]() | SG8R | 300 | 250 | 250 |
SG12R | 400 | 300 | 300 |
Machine | SG8R | SG12R |
---|---|---|
Travel (X / Y / Z) in mm | 300 / 250 / 250 | 400 / 300 / 300 |
Max. workpiece dimensions (W x D x H) in mm | 770 x 490 x 200 | 900 x 650 x 350 |
Max. workpiece weight in kg | 550 | 1000 |
Max. electrode weight in kg | 25 | 50 |
Table dimensions (W x D) in mm | 500 x 350 | 700 x 500 |

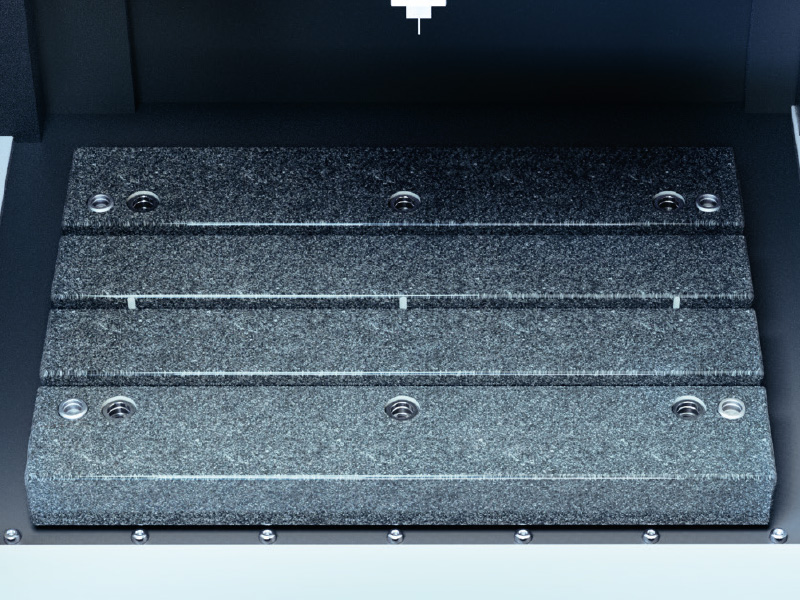

Table layout | Granite / 3 T-slots | Steel / 5 T-slots |
Daylight (table – C-axis with EROWA chuck) in mm | 150–400 | 200–500 |
Max. dielectric filling level (measured from worktable surface) | 250 | 400 |
Overall dimensions with tool changer (W x D x H) in mm | 1530 [2140] x 2070 x 2140 | 1725 [2285] × 2200 × 2420 |
Machine weight in kg | 2000 | 3500 |
Mains voltage | 3-phase 400 V/AC, 50/60 Hz |

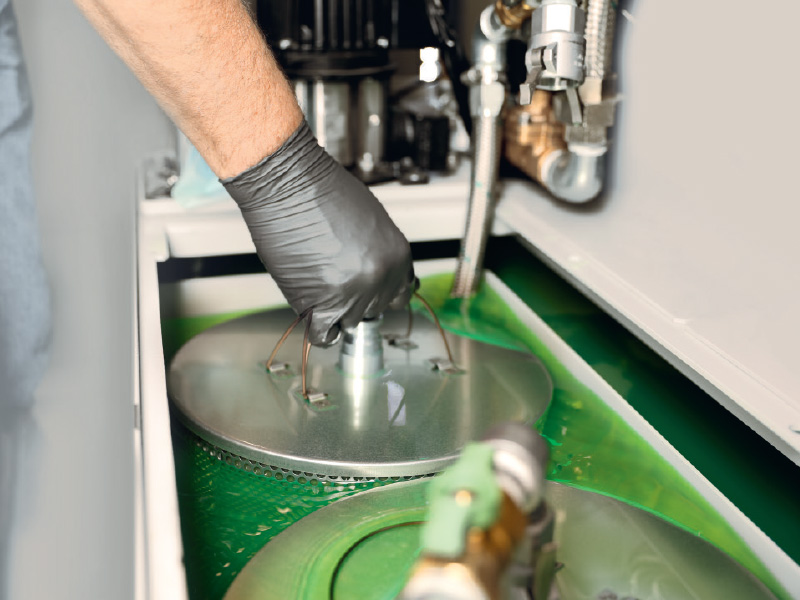

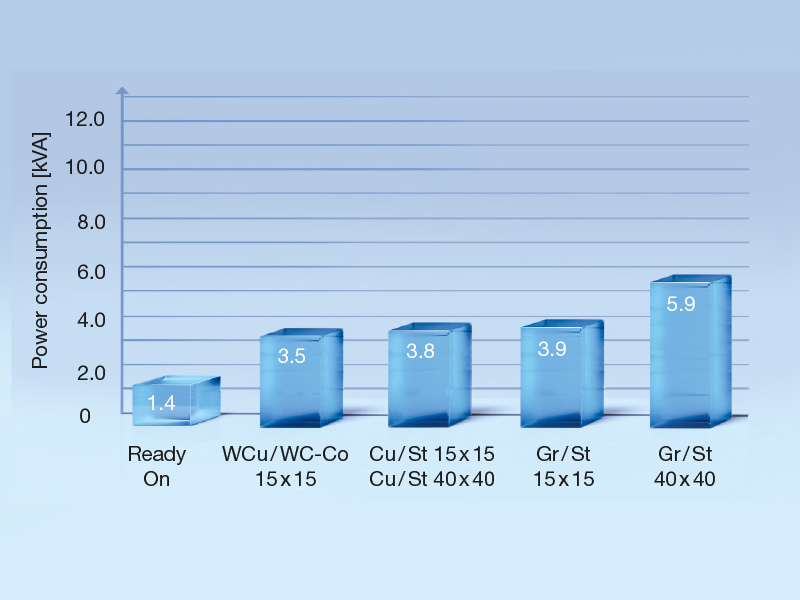

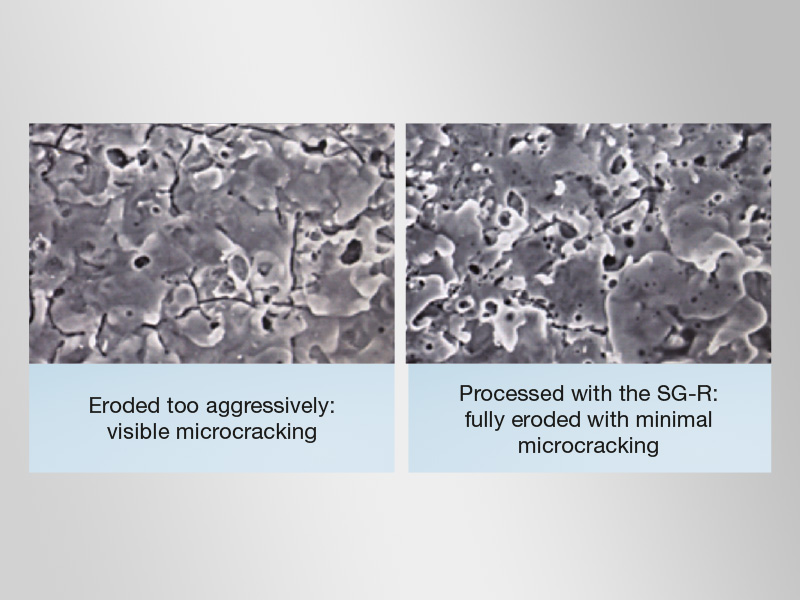

Tank unit / filter system | SG8R | SG12R |
---|---|---|
Tank capacity in l | 260 | 360 |
Filter particle size in µm / filter elements | 3 / 1 | 3 / 2 |
Temperature control | Dielectric cooling unit | |
Weight (dry) in kg | Included in machine weight |
Generator | SG8R | SG12R |
---|---|---|
Power supply unit | Regenerative transistor pulse type | |
Cooling method | Fully sealed / indirect air cooling | |
Max. output current in A | 80 | 80 (optional 120) |
Dimensions (W x D x H) in mm (included in overall dimensions) | 410 x 1000 x 1540 | 410 x 1000 x 1540 (at 120 A: 410 x 1240 x 1600) |
Weight in kg (included in machine weight) | 326 | 326 (at 120 A: 482) |
Control | SG8R | SG12R |
---|---|---|

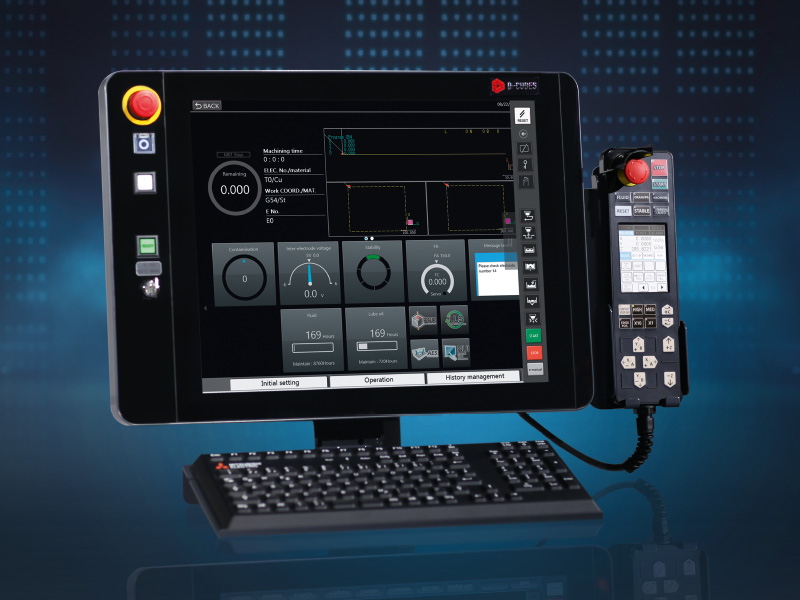

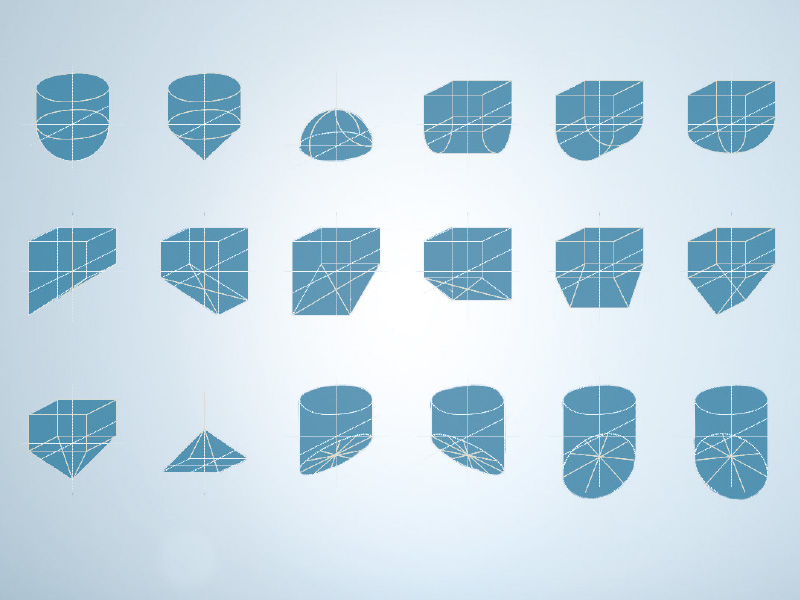

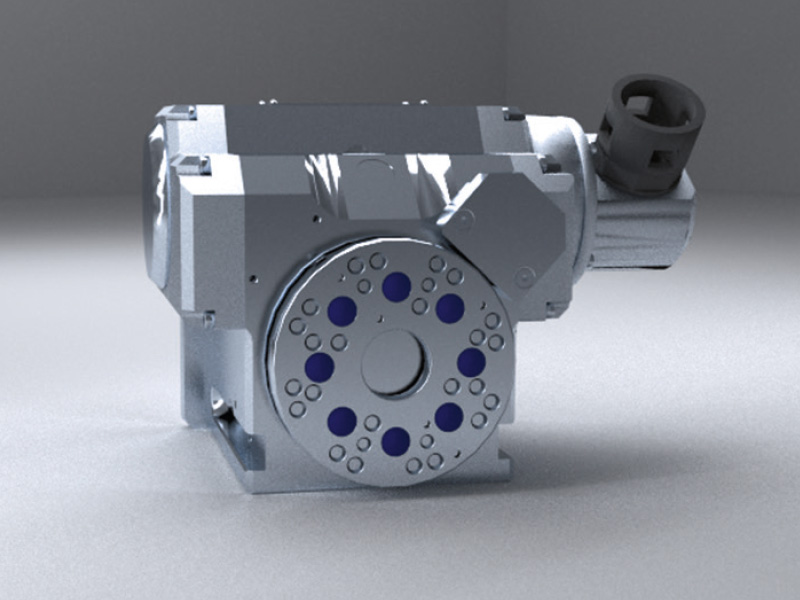

Input method | Keyboard, USB flash drive, Ethernet, 19” touchscreen | |
Control system | CNC, closed circuit | |
Min. command step X / Y / Z in μm / C in ° | 0.1 / 0.1 | |
Min. axis resolution in µm | 0.1 |
Equipment | SG8R | SG12R |
---|---|---|
Work table steel | – | Yes |
Work table granite | Yes | – |
10-fold electrode changer | Factory option | |
20-fold electrode changer | Factory option | |

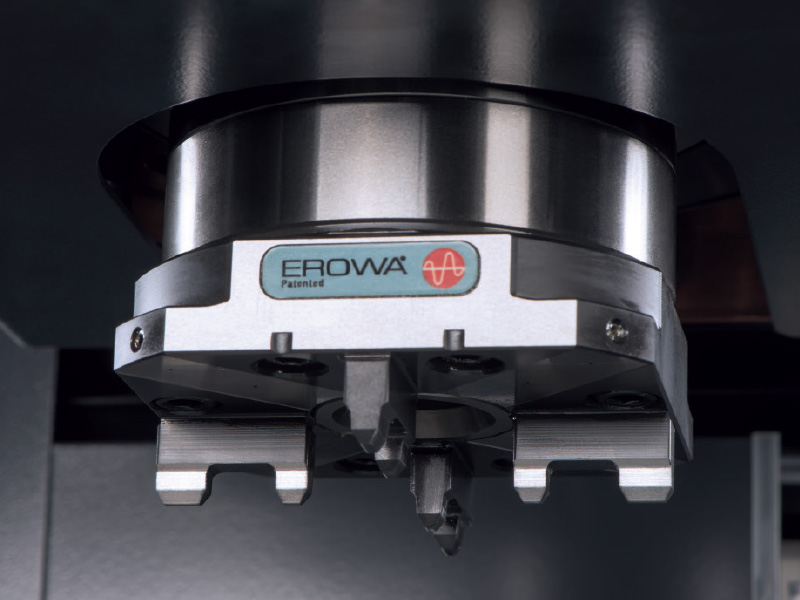

High-Speed Spindle | Factory option | |
Clamping system EROWA | Yes | |
Clamping system 3R / Hirschmann | Optional | |
Generator GV120 (120 A) | – | Factory option |
HPS circuit for PCD/CBN | Optional | |
LLTX lotus leaf technology | Factory option | |
Fine hole drilling jig | Optional | |
High-pressure pump > 50 bar | Optional | |
Tricolour status lamp | Optional | |
ERGO-LUX | Optional | |

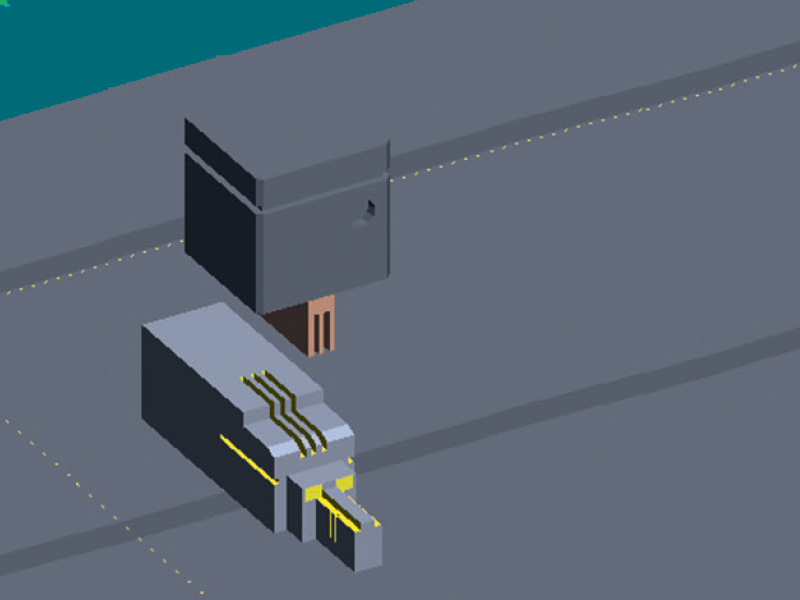

3D check | Optional | |
Ethernet TCP/IP | Yes | |
DNC/FTP | Yes | |
Operating data output | Yes | |
MT-Connect | Yes | |
mcAnywhere Service | Yes | |
mcAnywhere Contact+ | Yes | |
mcAnywhere Control | Optional | |

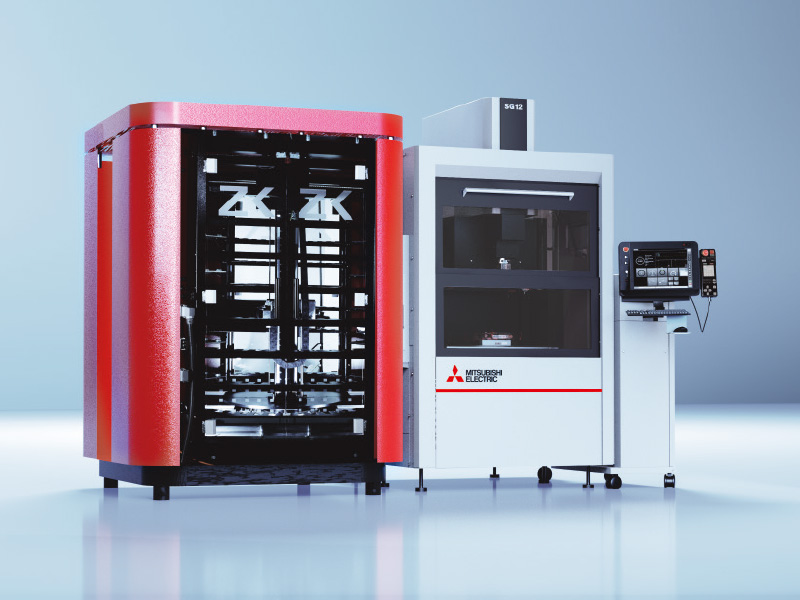

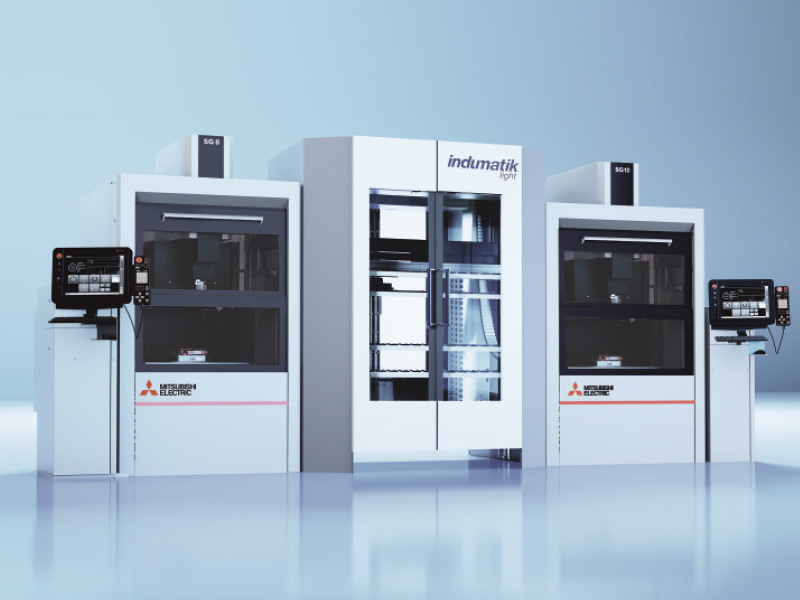

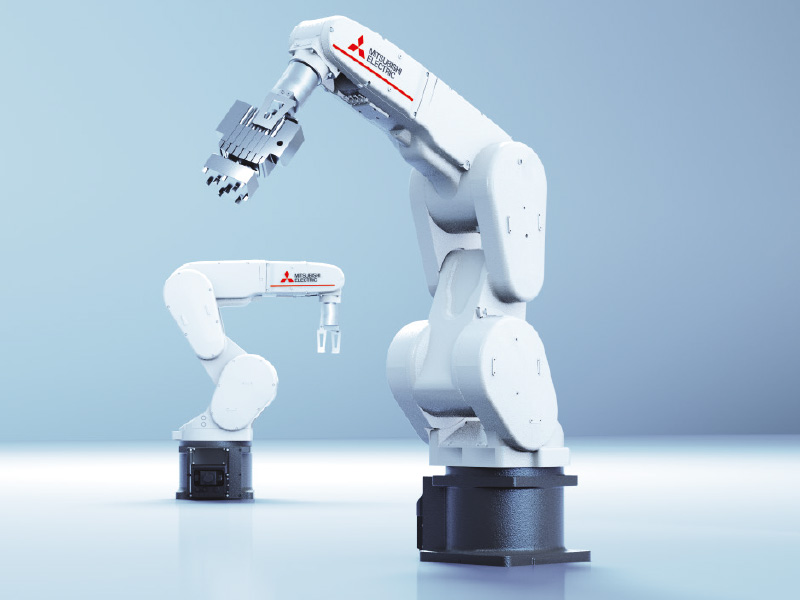

Automation kit incl. safety interface | Optional | |

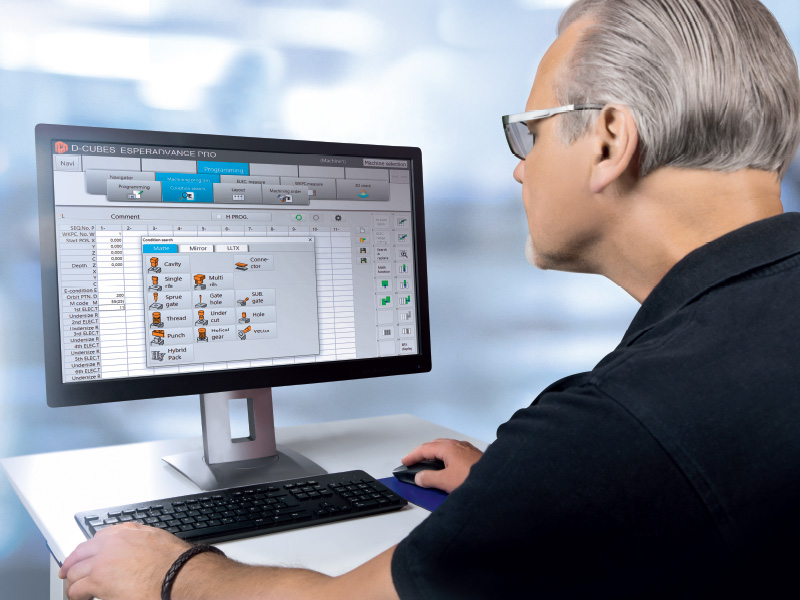

Offline Programming E.S.P.E.R. Advance Pro Lite | Yes | |
Offline Programming E.S.P.E.R. Advance Pro | Optional |
Power connection: 3-phase 400 V/AC, PE, ± 10%, 50/60 Hz, primary fuse 32 A slow
Pneumatic connection: 5–7 kgf/cm³, 500–700 kpa, minimum air flow rate 75 l/min, 3/8” hose connection
The EDM system should be set up on a suitable hard industrial floor and preferably on a consolidated concrete floor. Any shielding that may be necessary in conformity with the EMC Directive is not included in the equipment supplied by Mitsubishi Electric.
The cooling unit contains fluorinated greenhouse gas R407C. For further information, please refer to the associated operating instructions.
