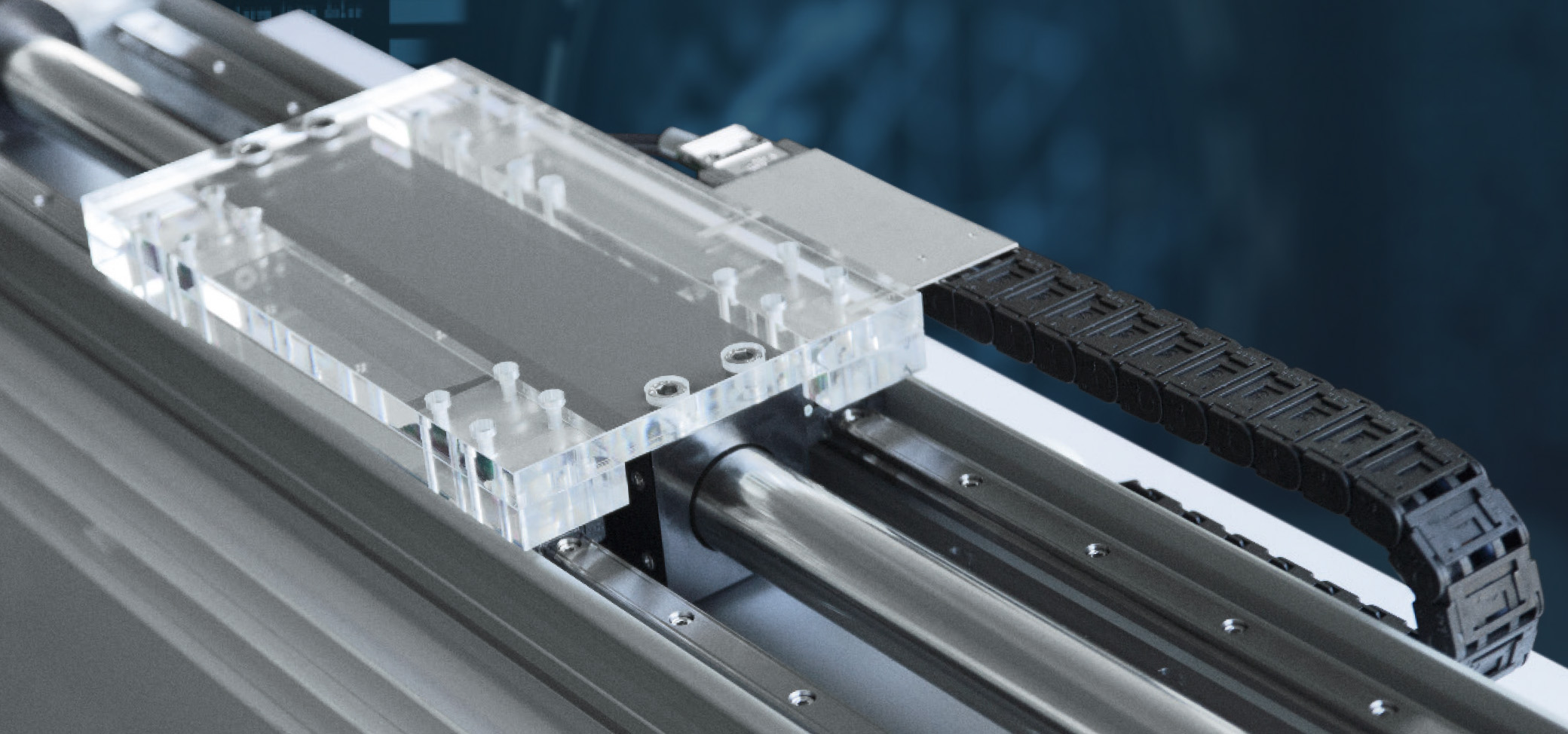

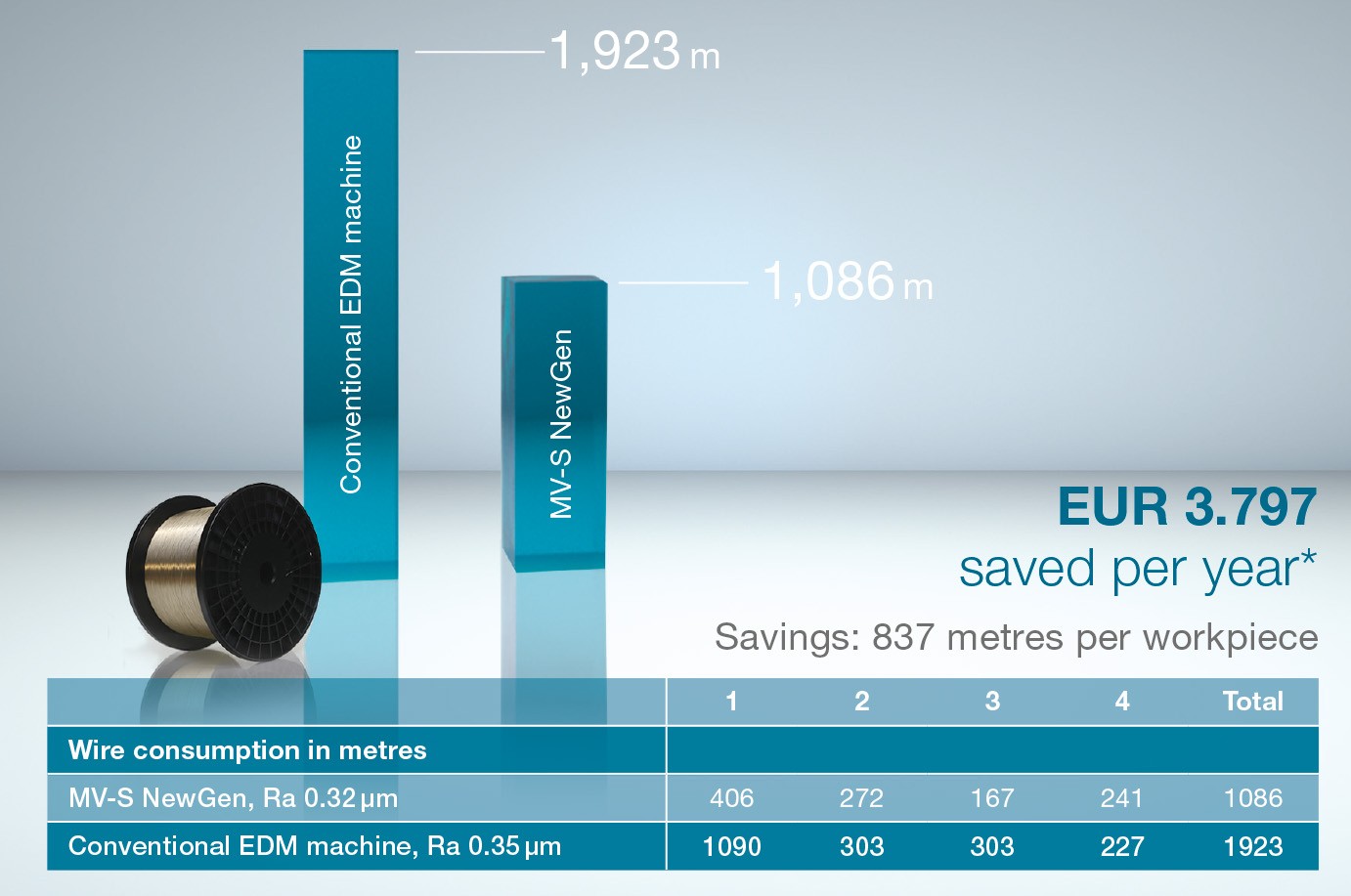

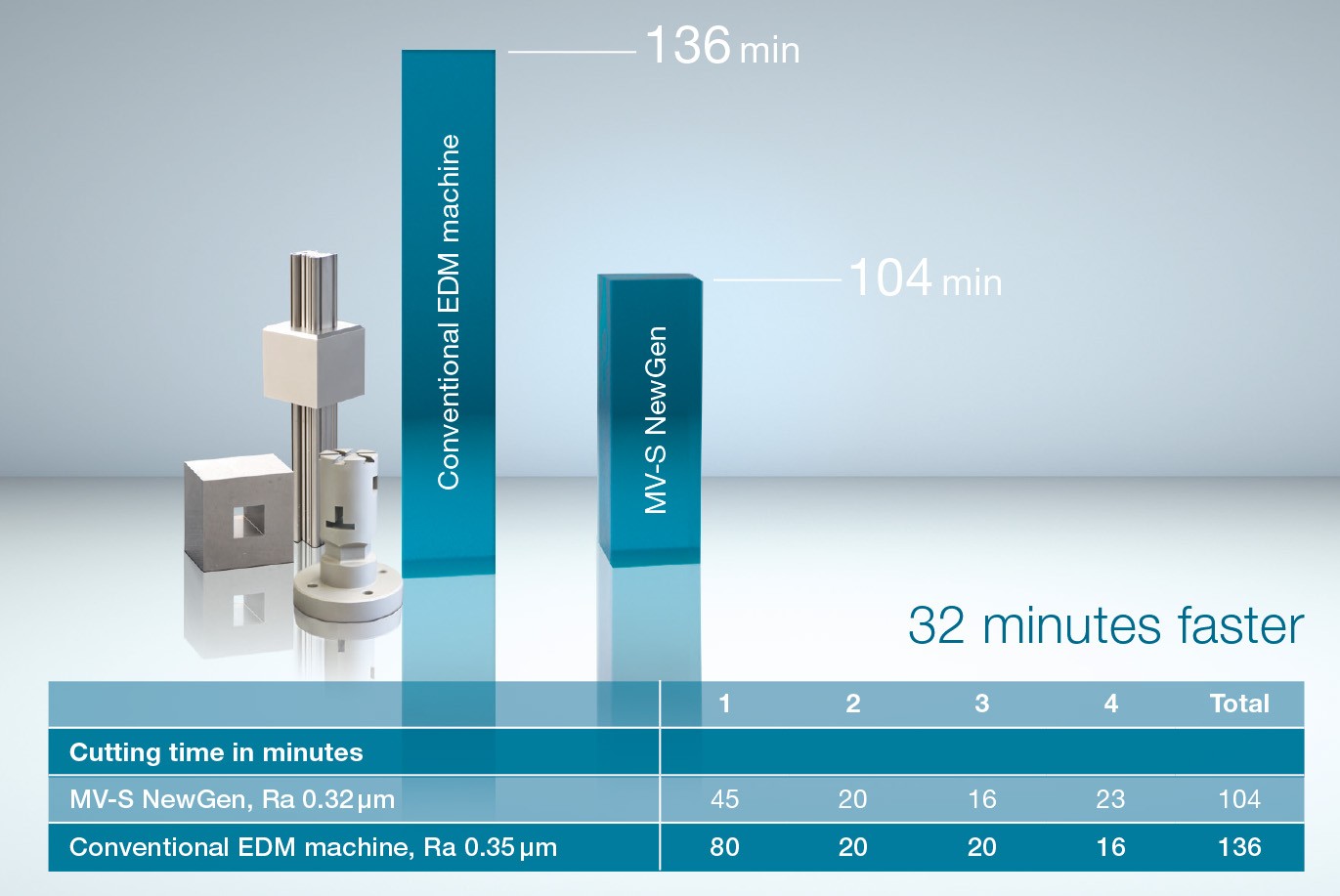

Die MV-S-Serie ist gemacht für hohe Schnitt geschwindigkeit in Kombination mit engen Toleranzen und geringer Leistungs aufnahme. Mit seinem berührungslosen Tubular-Antrieb und modernen Technologien optimiert er den Draht- und Stromverbrauch. Daher sorgen diese Maschinen für wirtschaftliche Vorteile, die sich Jahr für Jahr auszahlen. Schließlich sind sie durch die „Intelligent AT“-Drahteinfädelung ideal für einen zuverlässigen mannlosen Betrieb.
Mit einer allgemeinen Genauigkeit von ≥3 µm und einer Rauheit von bis zu 0,3 µm können sie für folgende Produktionsbereiche eingesetzt werden:
Willkommen zu unserer Schnellnavigation. Hier können Sie direkt ein Thema auswählen, das Sie besonders interessiert. Sie werden dann direkt zu diesem Thema weitergeleitet.
MV-S Series | X | Y | Z | |
---|---|---|---|---|
![]() | MV1200S | 400 | 300 | 220 |
MV2400S | 600 | 400 | 310 | |
MV2400S Z+ | 600 | 400 | 425 | |
MV4800S | 800 | 600 | 510 |
Machine | MV1200S | MV2400S | MV2400S Z+ | MV4800S |
---|---|---|---|---|
Travel (X / Y / Z) in mm | 400 / 300 / 220 | 600 / 400 / 310 | 600 / 400 / 425 | 800 / 600 / 510 |
Travel (U / V) in mm | 120 / 120 (+/- 60) | 150 / 150 (+/-75) | 150 / 150 (+/-75) | 200 / 200 (+/-100) |
Taper angle (workpiece height) in °/mm | 15 / 200 30 / 87 | 15 / 260 30 / 110 | 15 / 260 30 / 110 | 15 / 355 30 / 155 |
Max. workpiece dimensions (W x D x H) in mm | 810 x 700 x 215 | 1050 x 820 x 305 | 1050 x 820 x 420 | 1250 x 1020 x 505 |
Max. workpiece weight in kg | 500 | 1500 | 1500 | 3000 |
Table dimensions (W x D) in mm | 640 x 450 | 840 x 560 | 840 x 640 | 1080 x 780 |

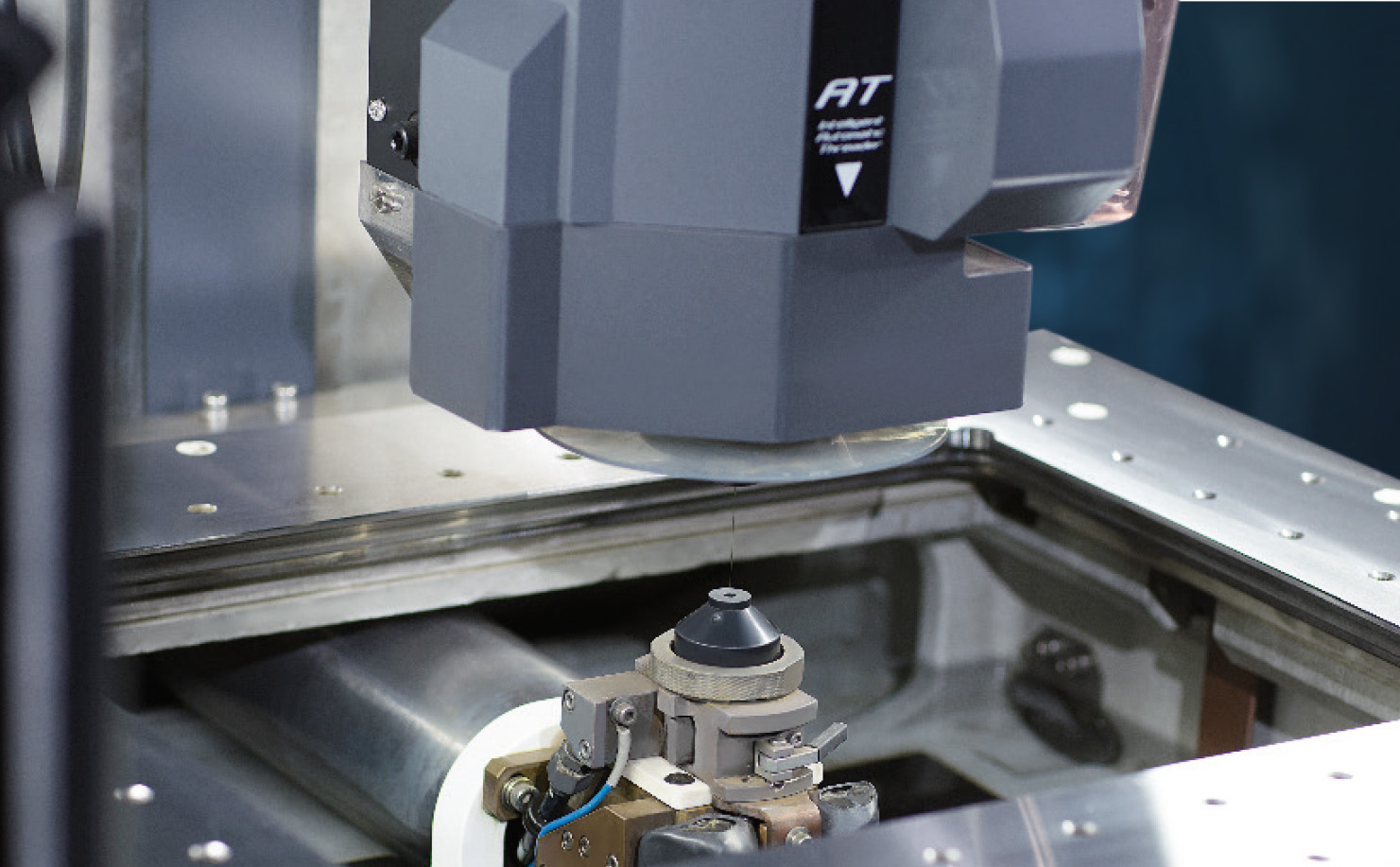

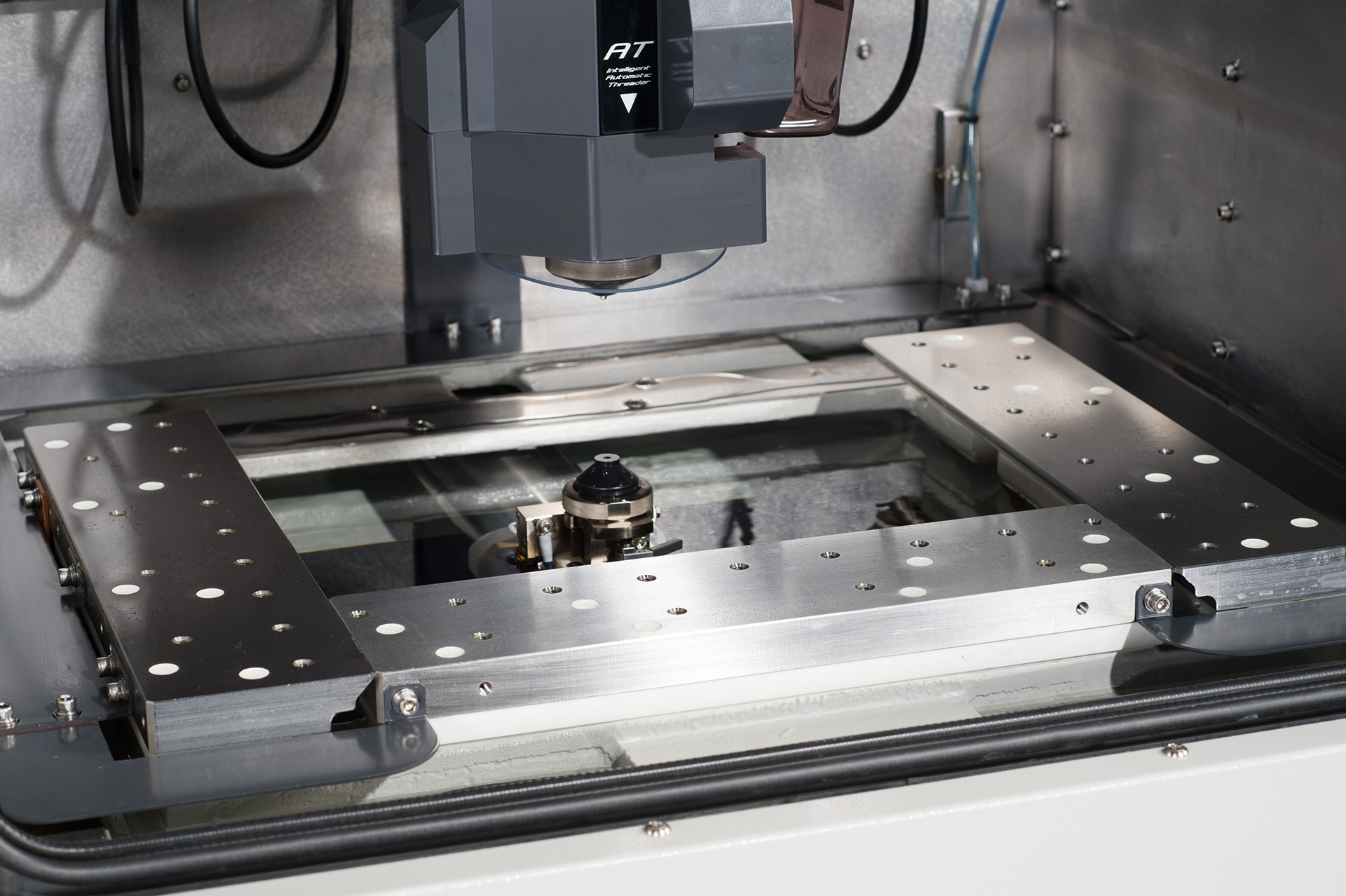

Table layout | Hardened three-sided table | Hardened four-sided frame table | Hardened four-sided table | |

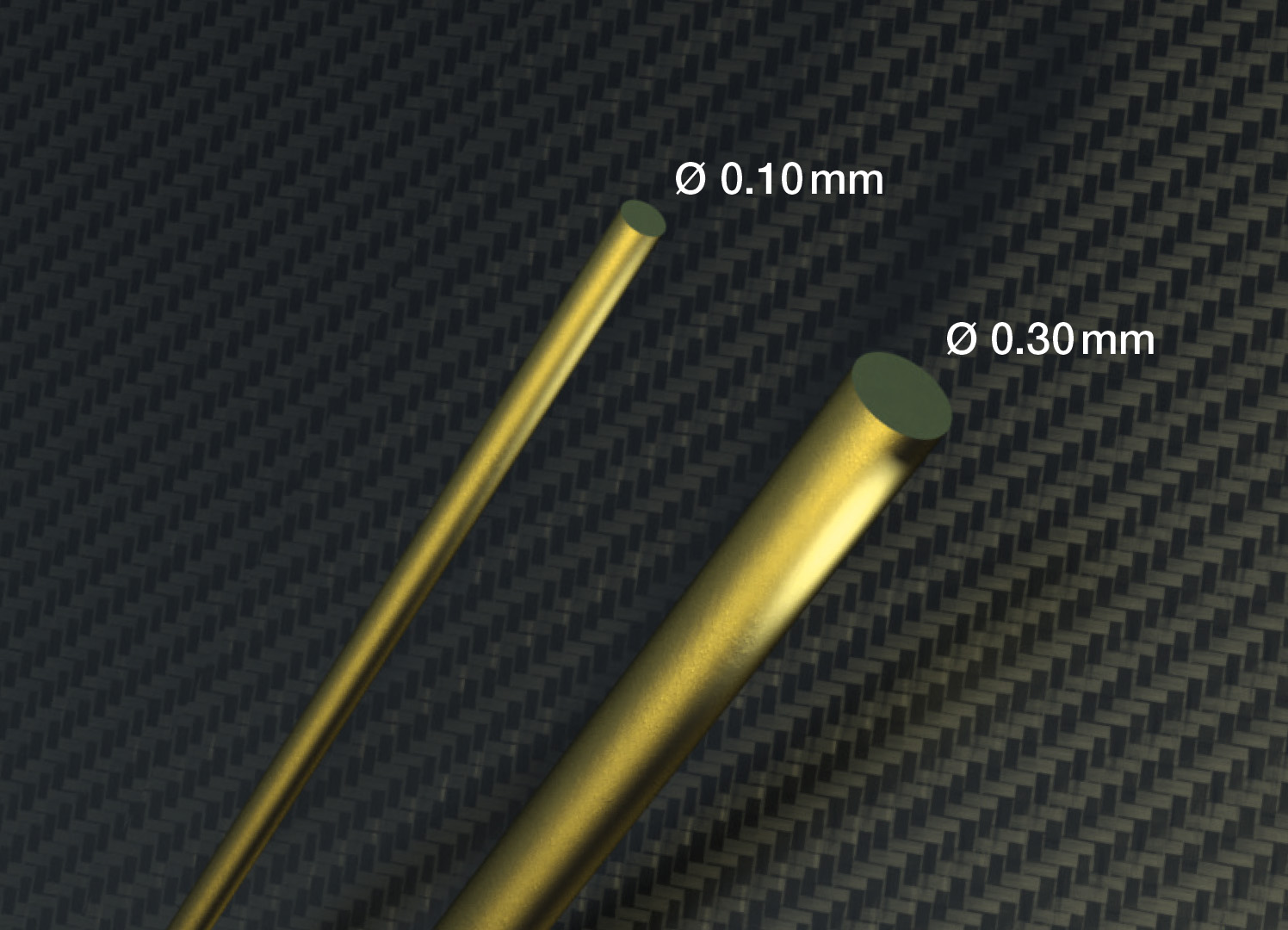

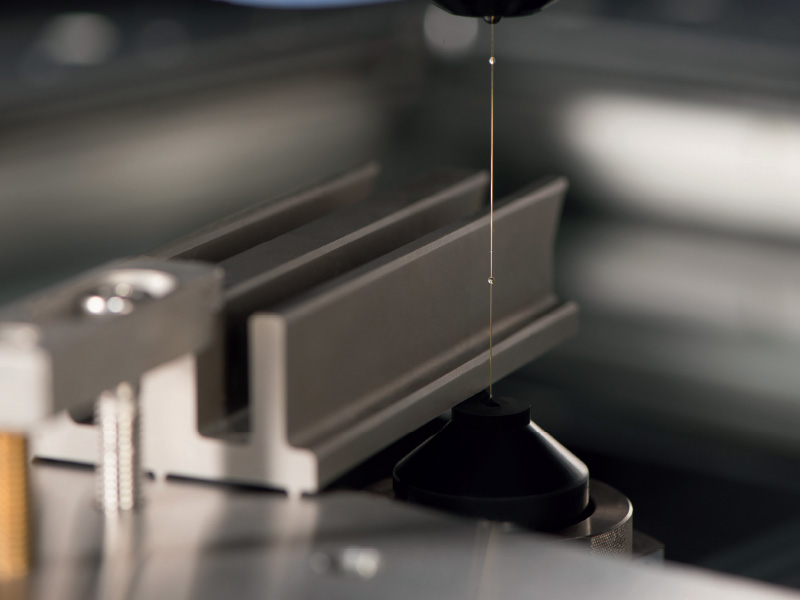

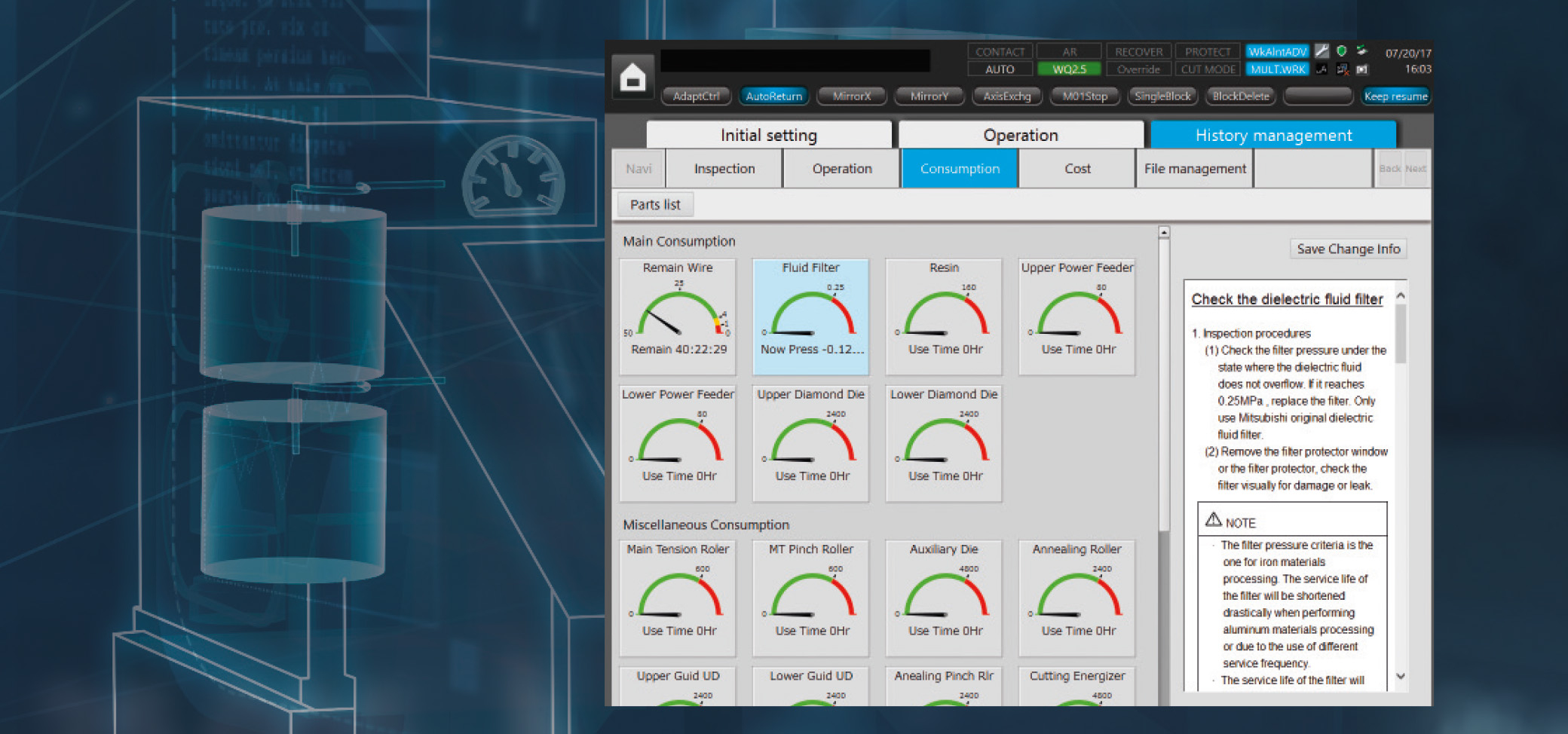

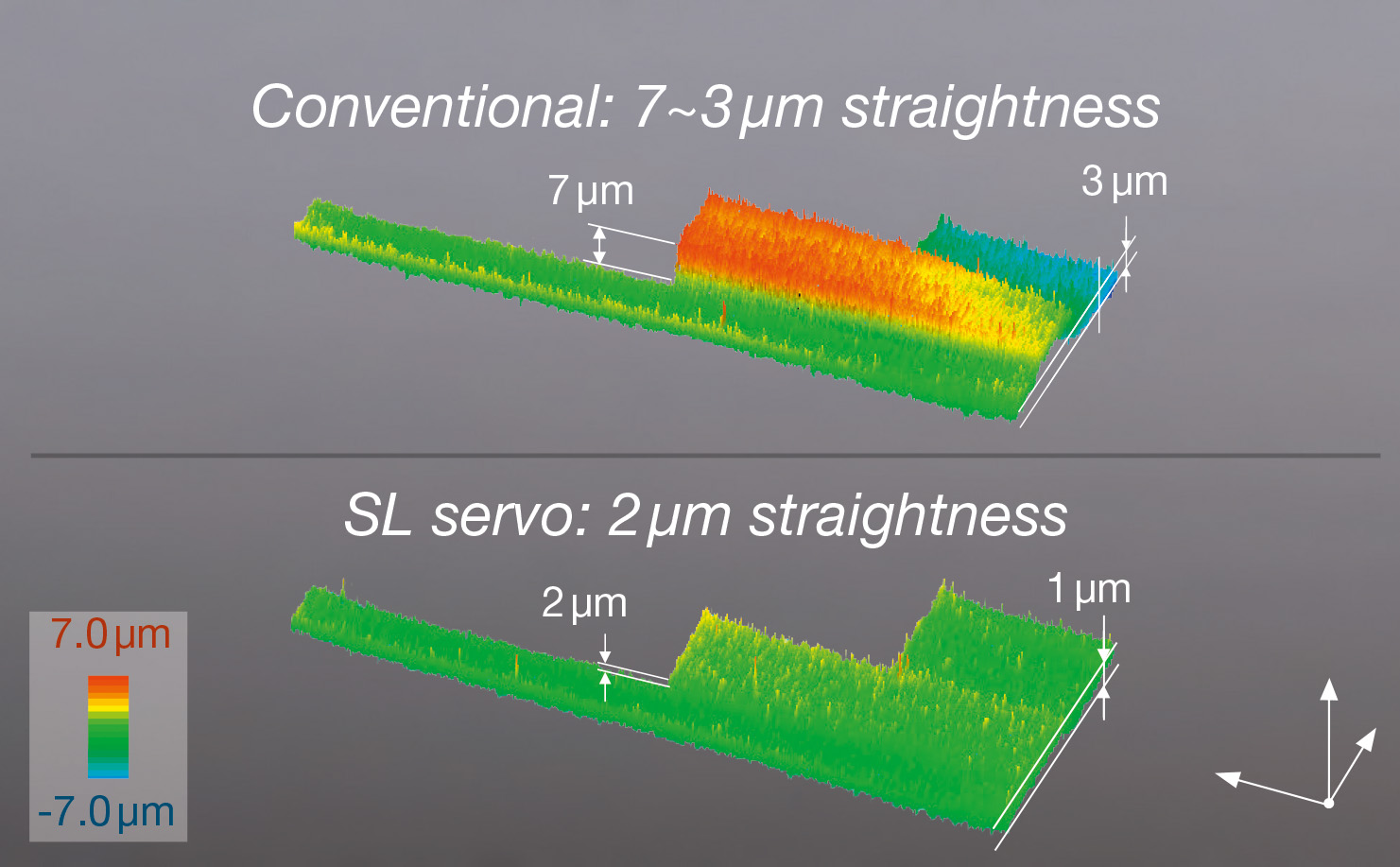

Possible wire diameters in mm | 0.1–0.3 | 0.15–0.3 | ||
Wire spool capacity in kg | 10 | 10 / 16 / 20 / 25 |
||
Automatic wire threader / wire chopper | Yes / Yes | |||
Overall dimensions (W x D x H) in mm | 2025 x 2760 x 2015 | 2687 x 3030 x 2150 | 2837 x 3452 x 2380 | 3130 x 3475 x 2815 |
Machine weight in kg | 2700 | 3500 | 3650 | 5700 |
Mains voltage | 3-phase 400 V/AC ± 10%, 50/60 Hz, 13 kVA |
Filter system | MV1200S | MV2400S | MV2400S Z+ | MV4800S |
---|---|---|---|---|
Tank capacity in l | 550 | 860 | 980 | 1480 |
Filter particle size in µm / filter elements | 3/2 | |||
Temperature control | Dielectric cooling unit |
|||
Weight (dry) in kg | Included in machine weight | 350 | 390 | 450 |
Generator | MV1200S | MV2400S | MV2400S Z+ | MV4800S |
---|---|---|---|---|
Power supply unit | Regenerative transistor pulse type | |||
Cooling method | Fully sealed /indirect air cooling | |||
Max. output current in A | 50 | |||
Dimensions (W x D x H) in mm | 600 x 650 x 1765 |
|||
Weight in kg | 240 |
Control | MV1200S | MV2400S | MV2400S Z+ | MV4800S |
---|---|---|---|---|
Input method | Keyboard, USB flash drive, Ethernet, 19” touchscreen | |||
Control system | CNC, closed circuit |
|||
Min. command step (X / Y / Z / U / V) in µm | 0.1 |
|||
Min. axis resolution in µm | 0.05 |
Equipment | MV1200S | MV2400S | MV2400S Z+ | MV4800S |
---|---|---|---|---|
Tubular Shaft Drives with linear scales (X / Y) | Yes | |||

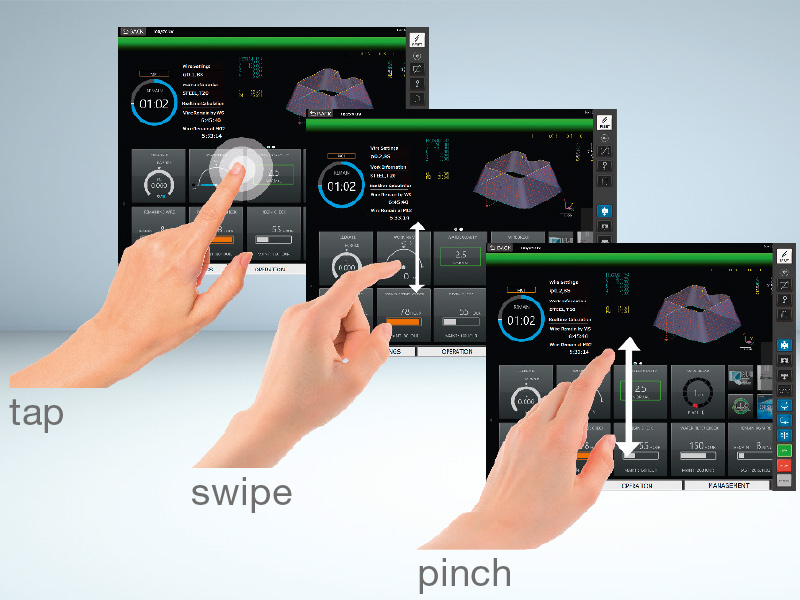

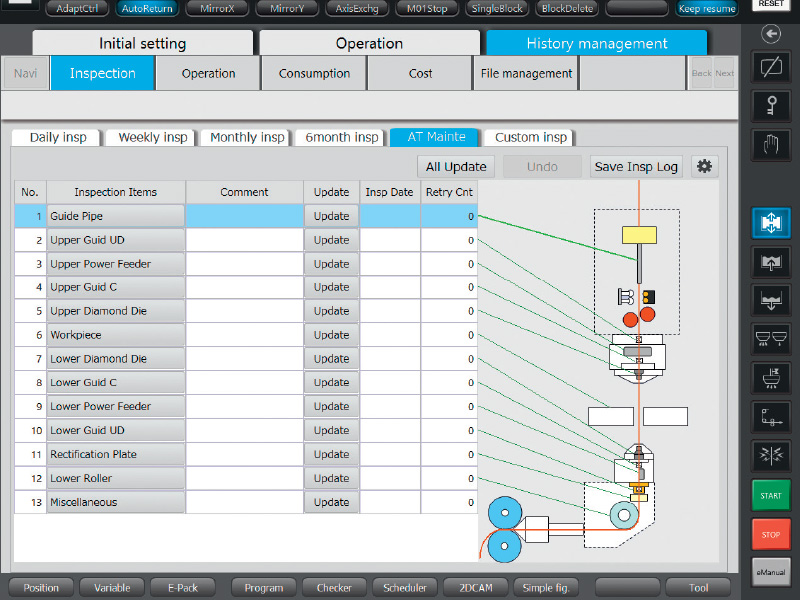

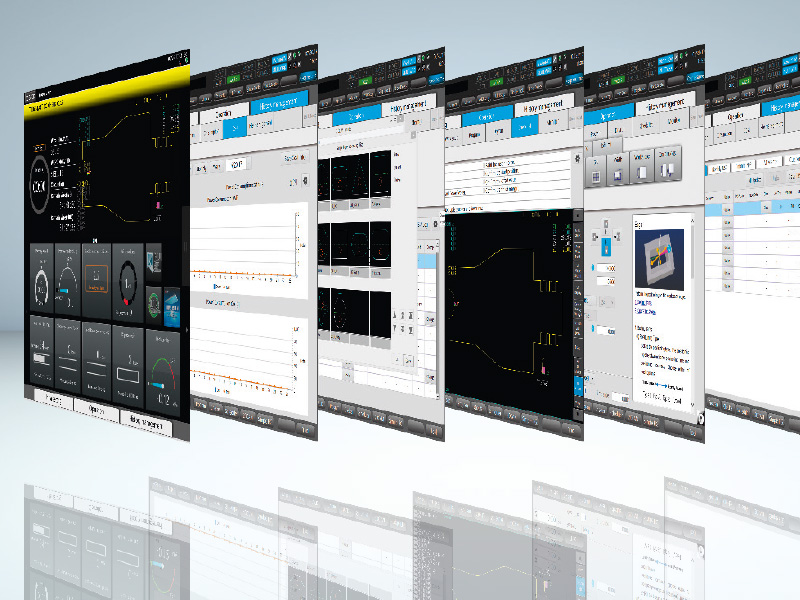

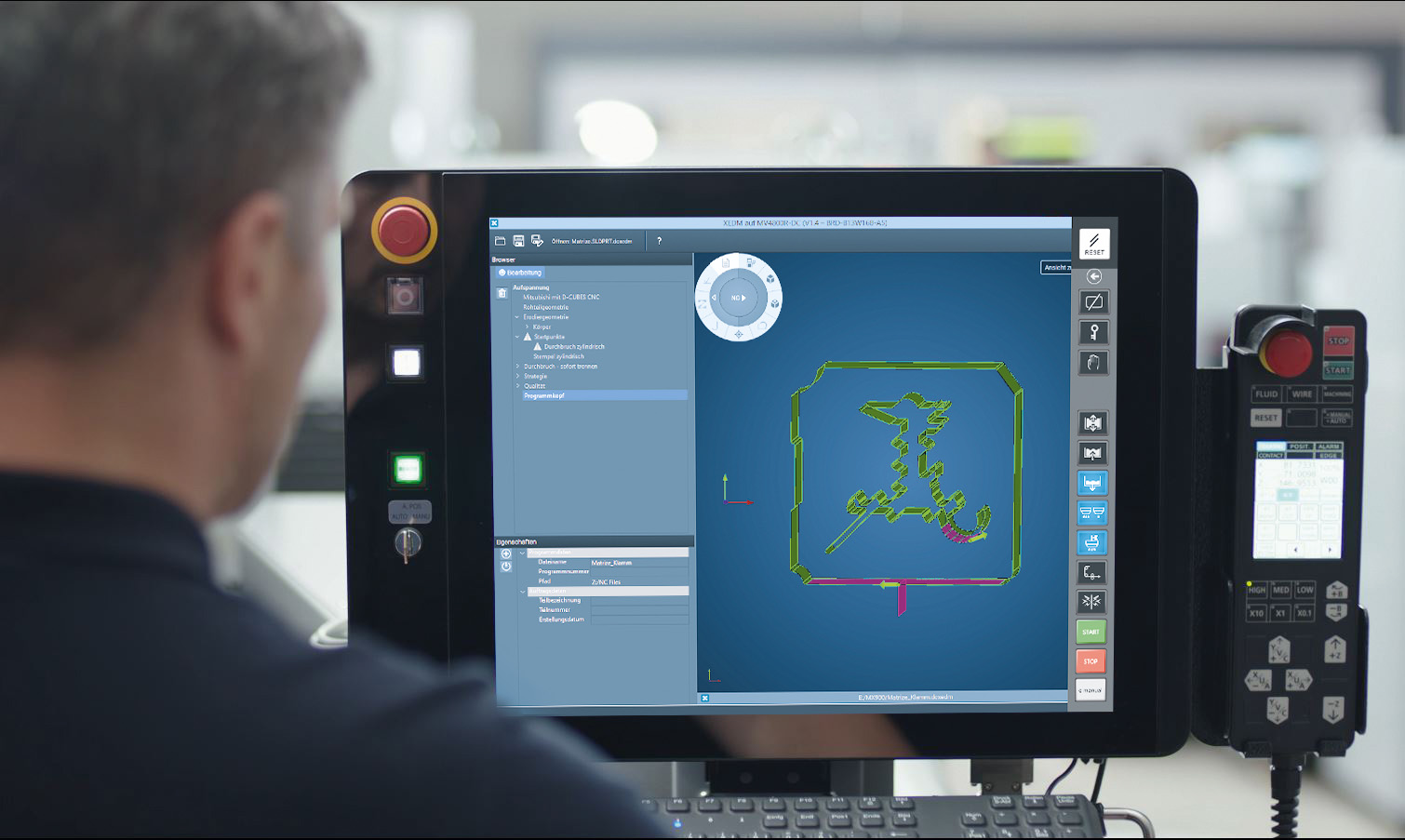

Control M800 with 19” full-touch monitor | Yes | |||

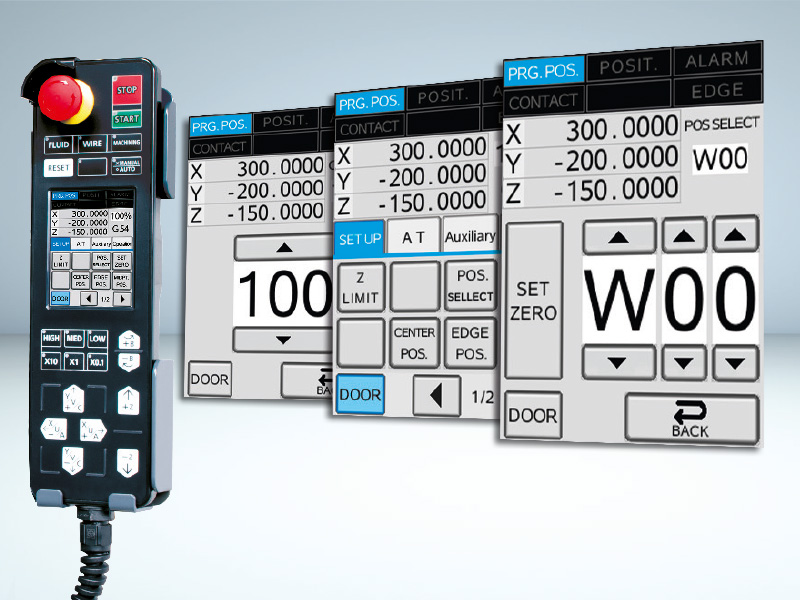

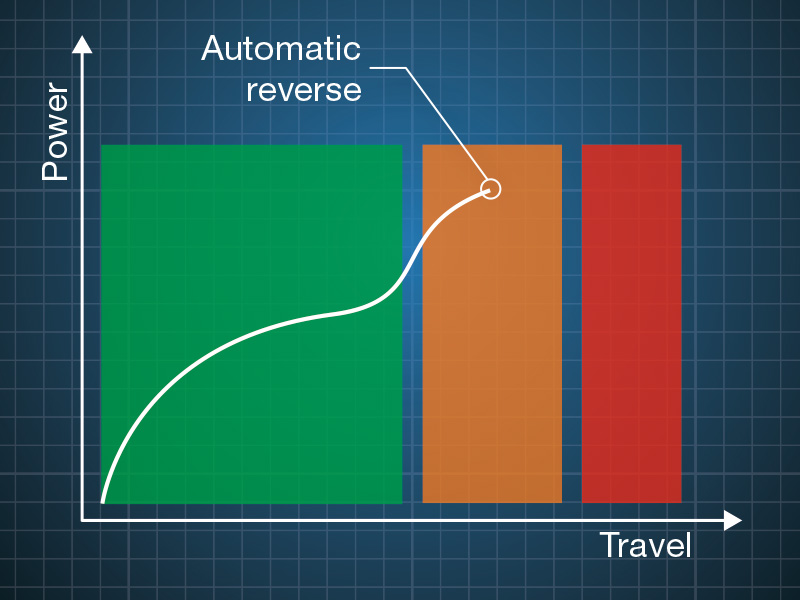

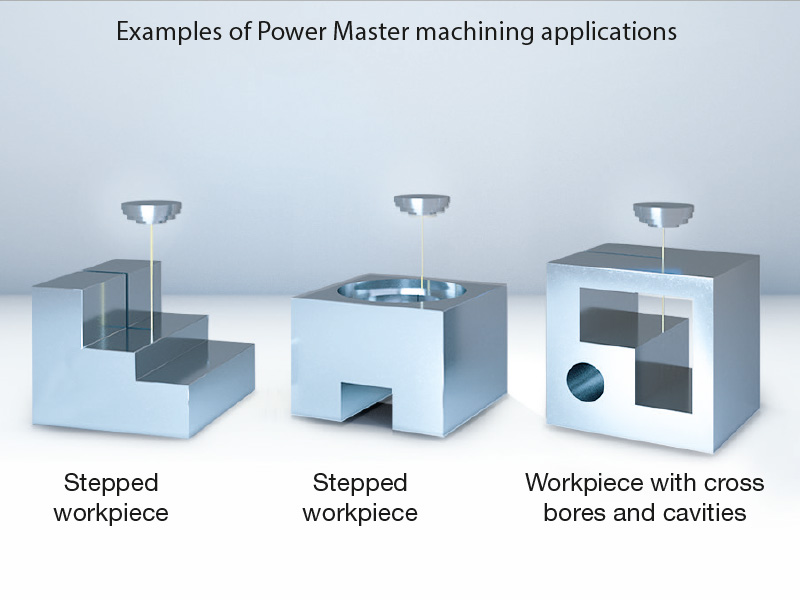

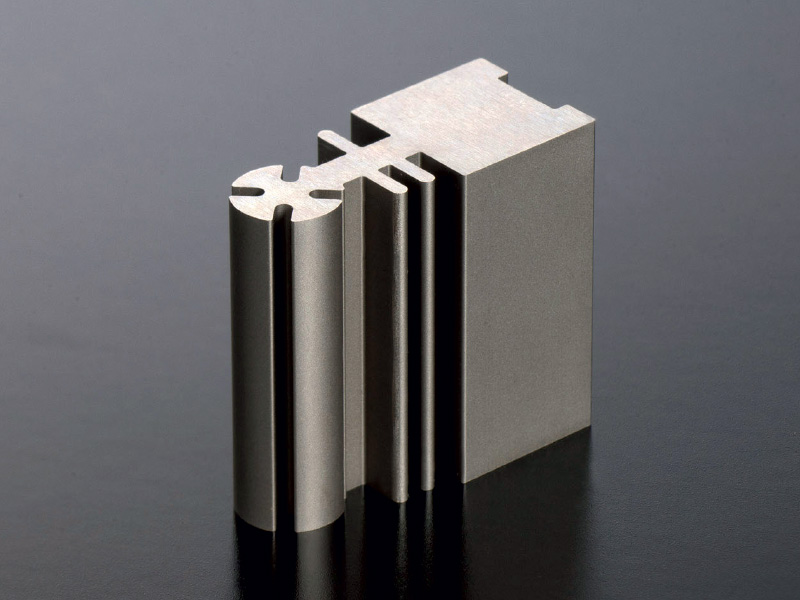

Hand pilot with configurable LCD monitor | Yes | |||
Vertical front door | Manual | Automatic | ||
Digital AE II generator | Yes | |||
Ethernet/DNC/FTP | Yes | |||

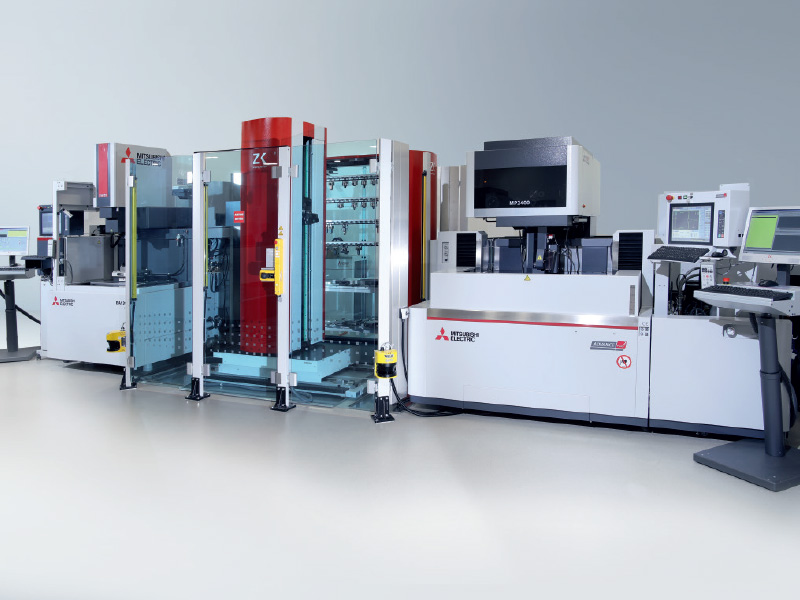

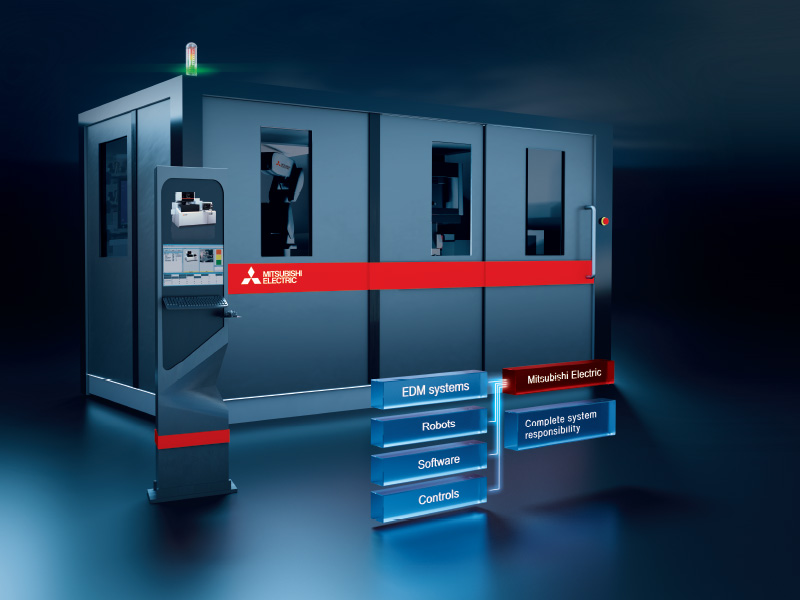

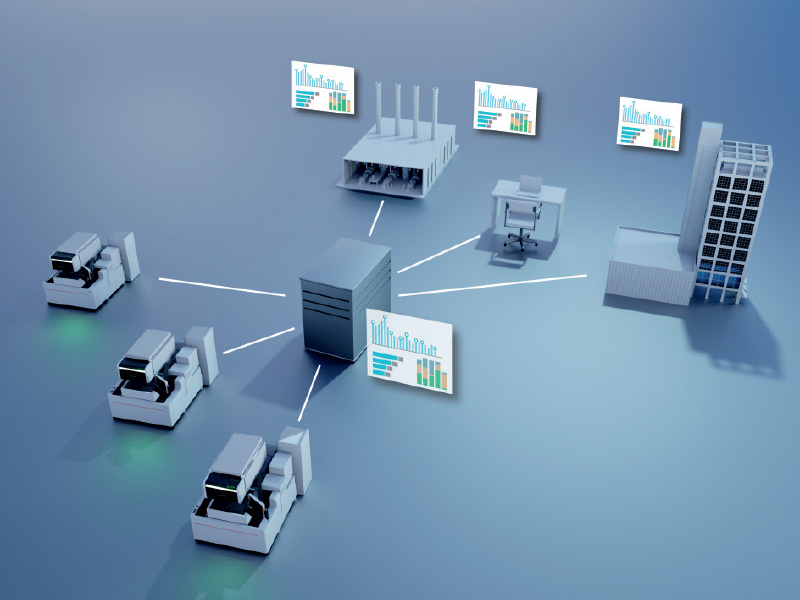

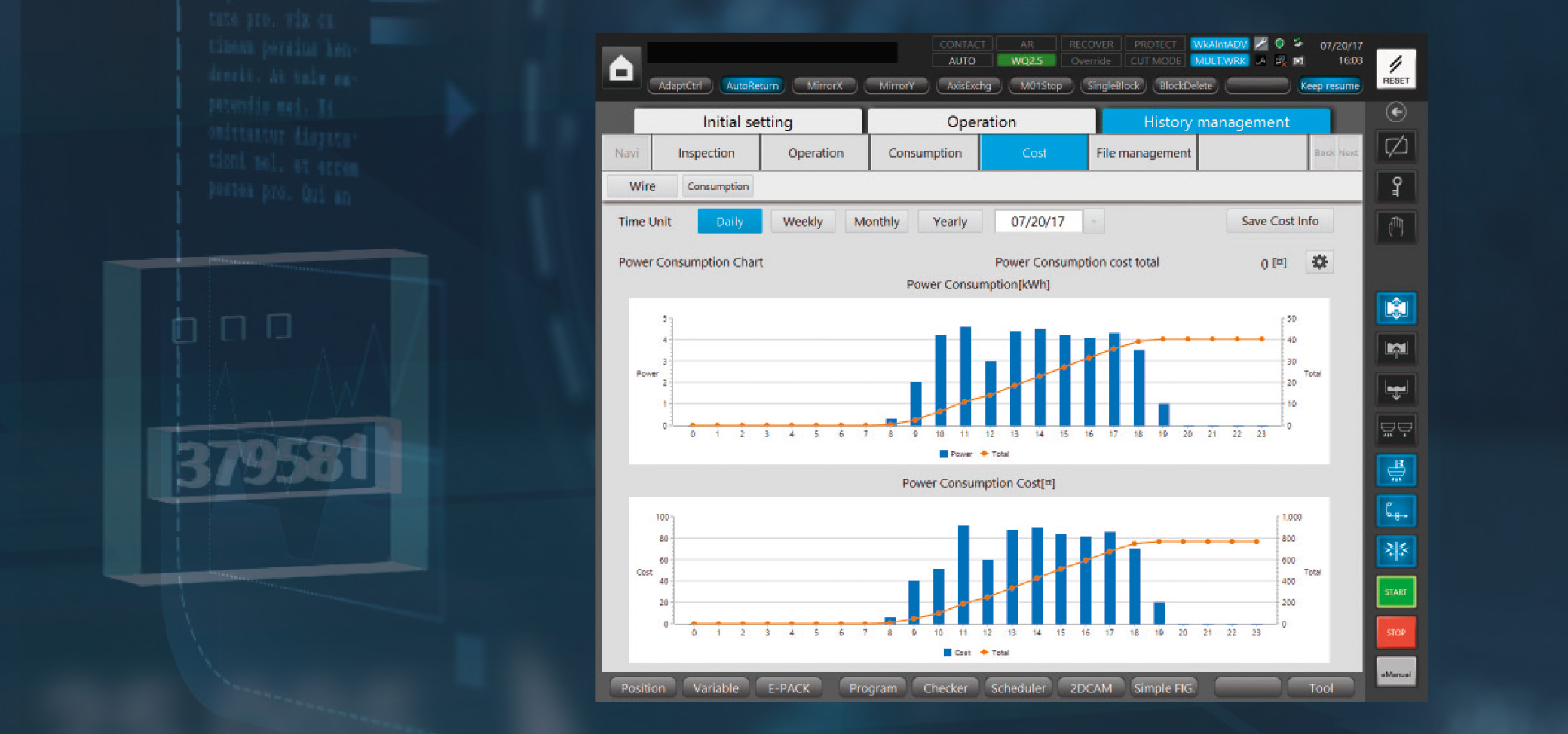

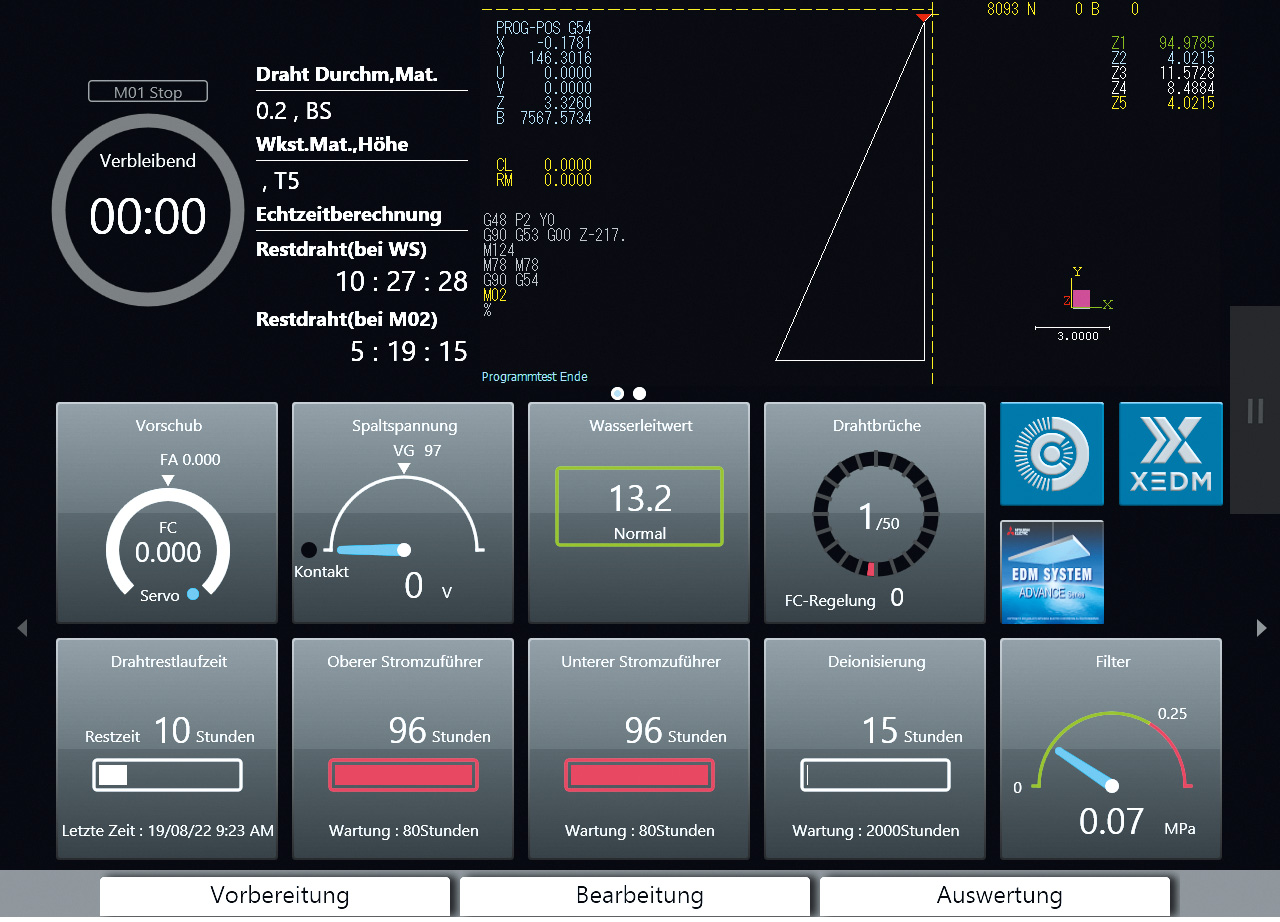

Preparation for automation | Optional | |||
McAfee AntiVirus embedded | Optional | |||
Production data output | Optional | |||
2D CamMagic on-board | Yes | |||

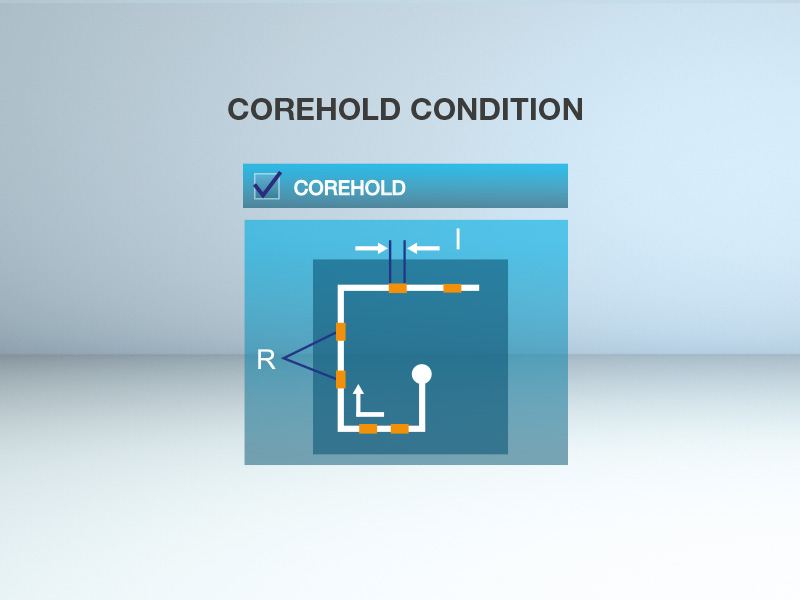

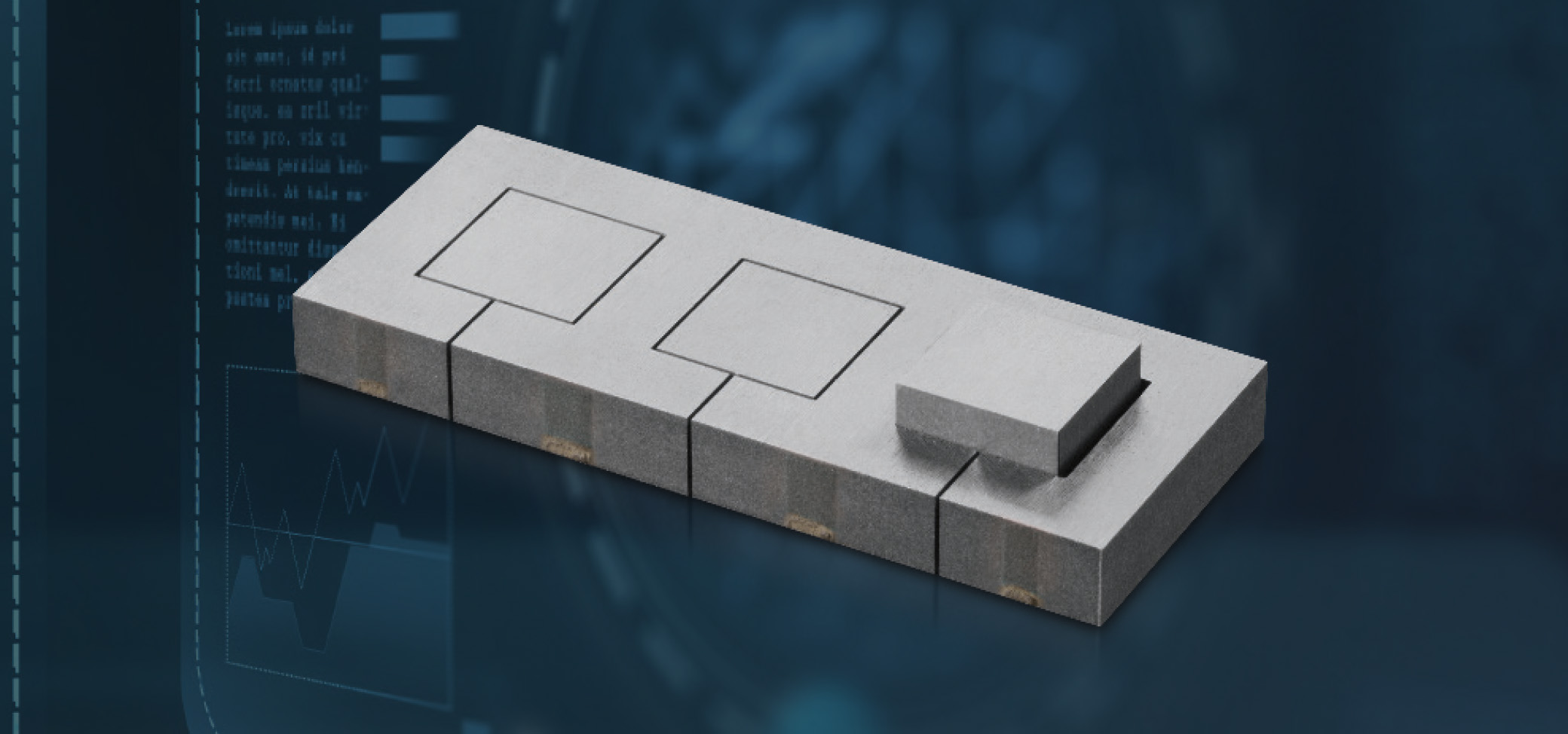

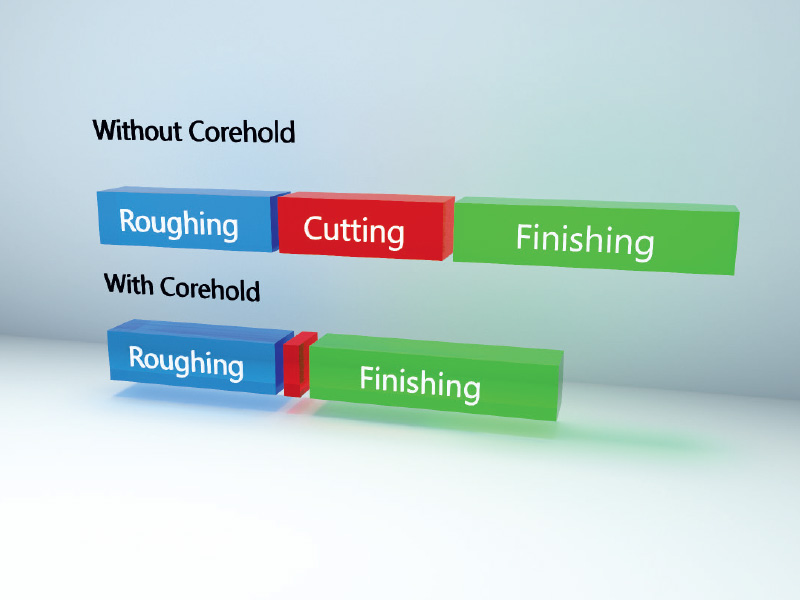

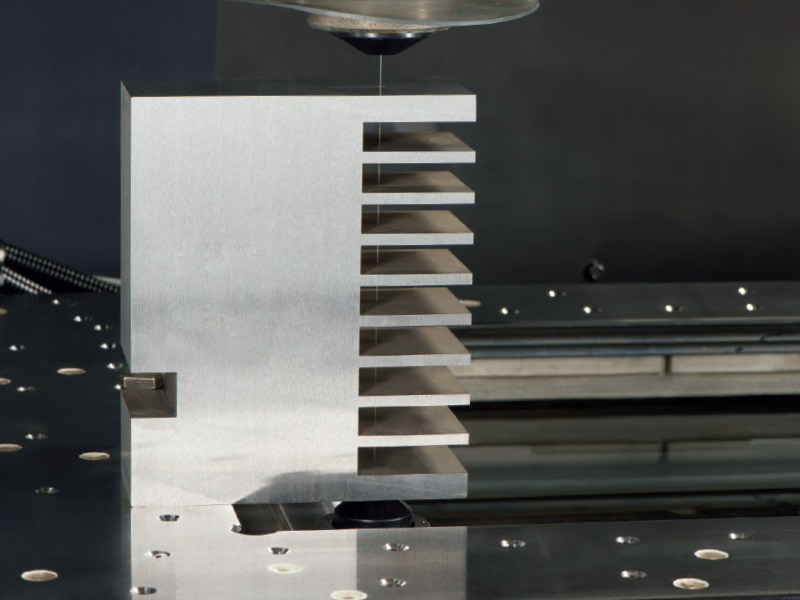

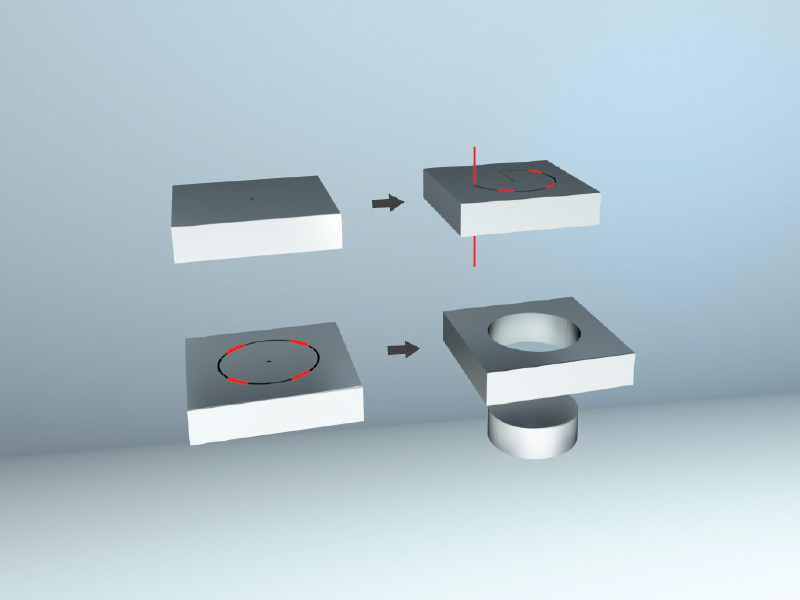

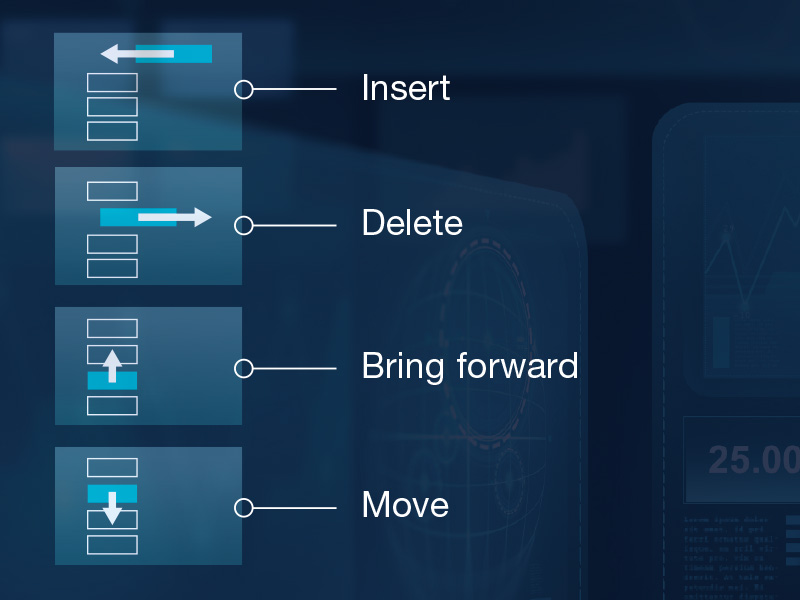

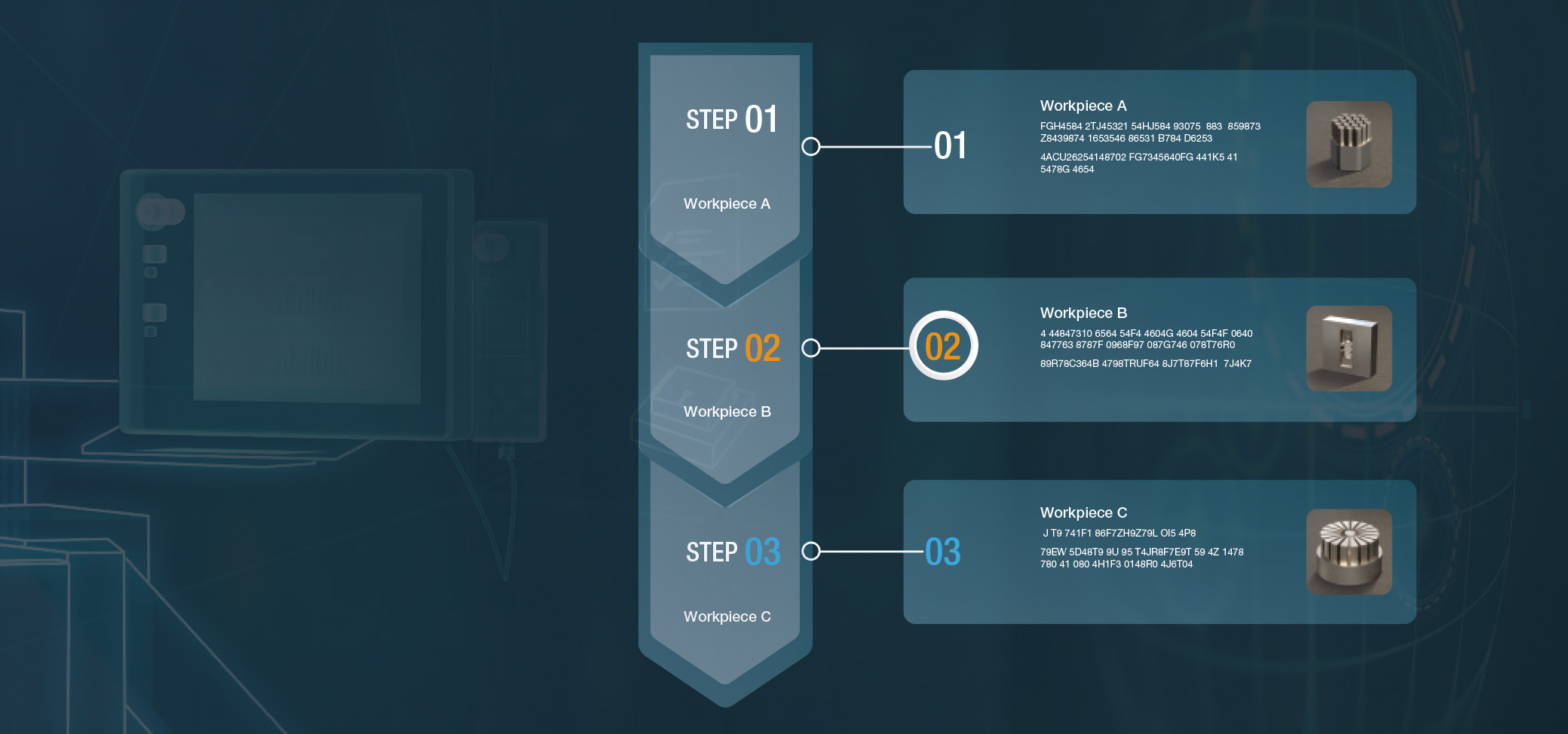

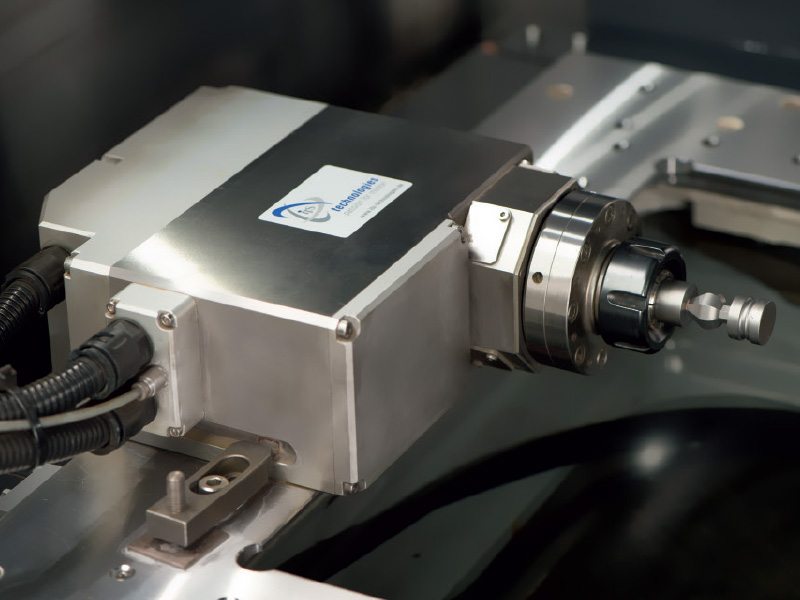

Corehold technology | Optional | |||
Job scheduler | Optional | |||
Sleep mode | Yes |
Optional Hardware | MV1200S | MV2400S | MV2400S Z+ | MV4800S |
---|---|---|---|---|

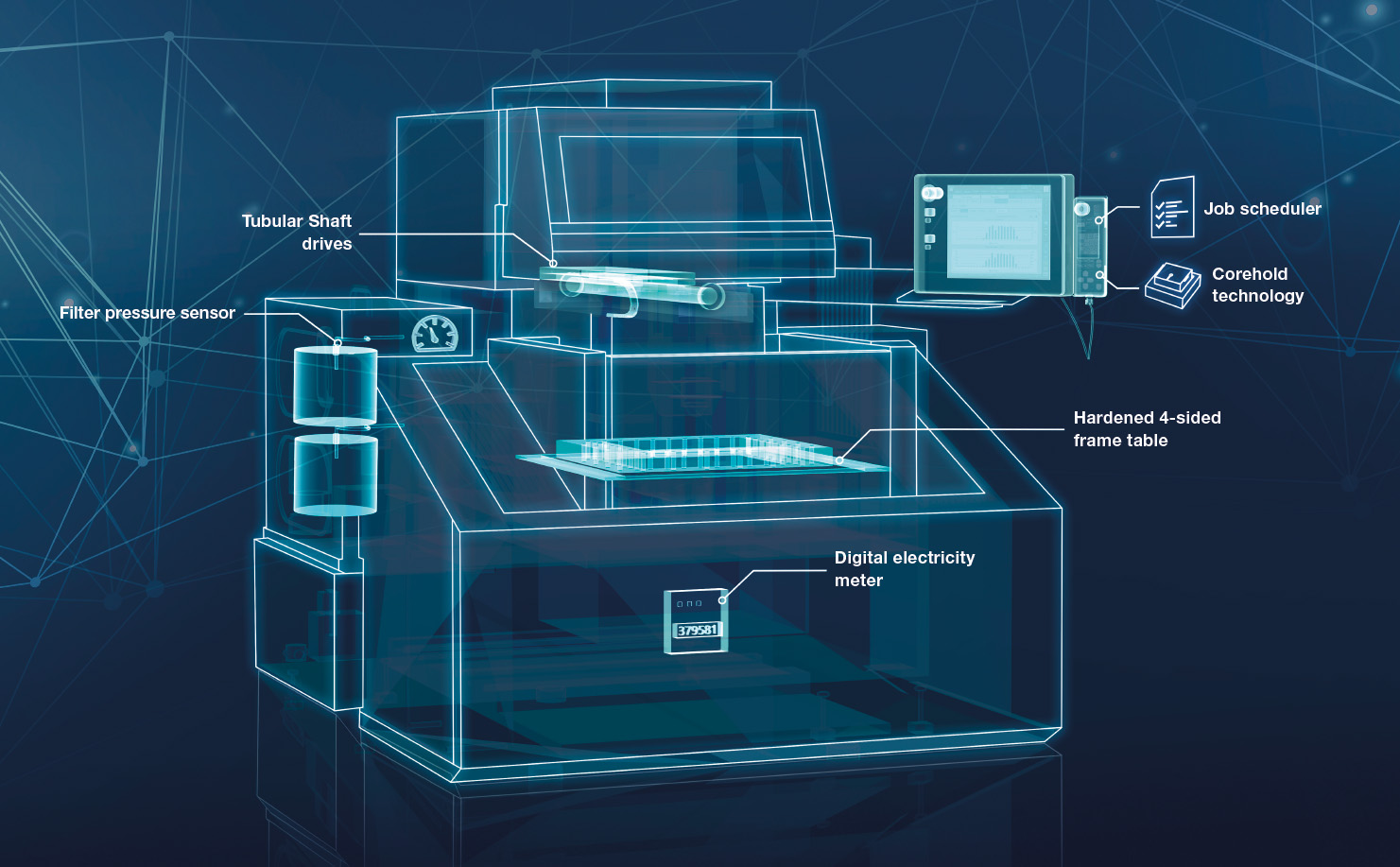

High-Spec package | Optional (not retrofittable) | |||

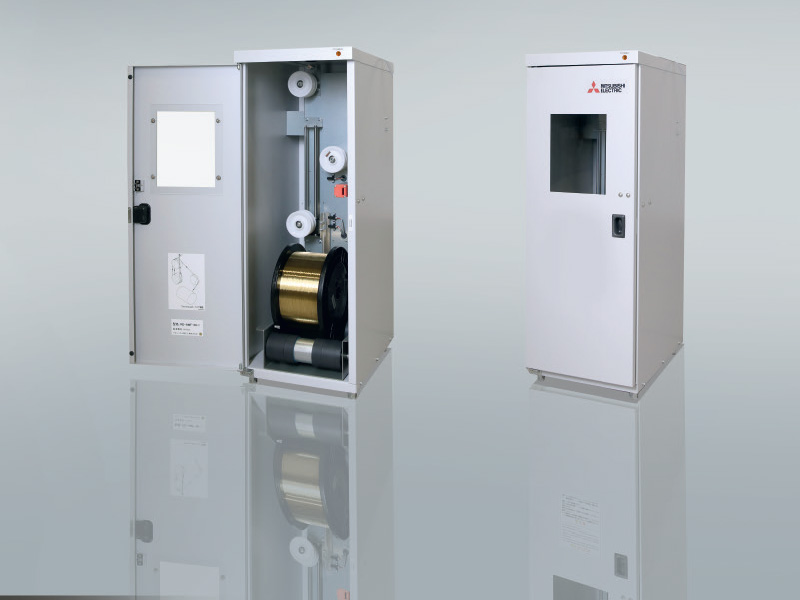

Wire station for 16 / 20 / 25 kg wire spools | Optional | Yes | ||
Wire station for 50 kg wire spools | Optional | |||
Angle Master Advance II – basic kit including aligning device | Optional | |||
Angle Master Advance II – wire threading set | Optional | |||

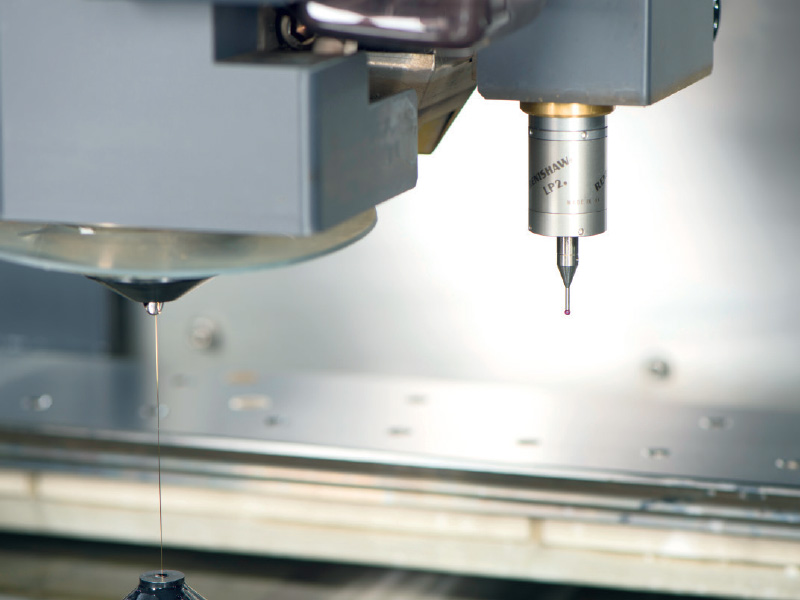

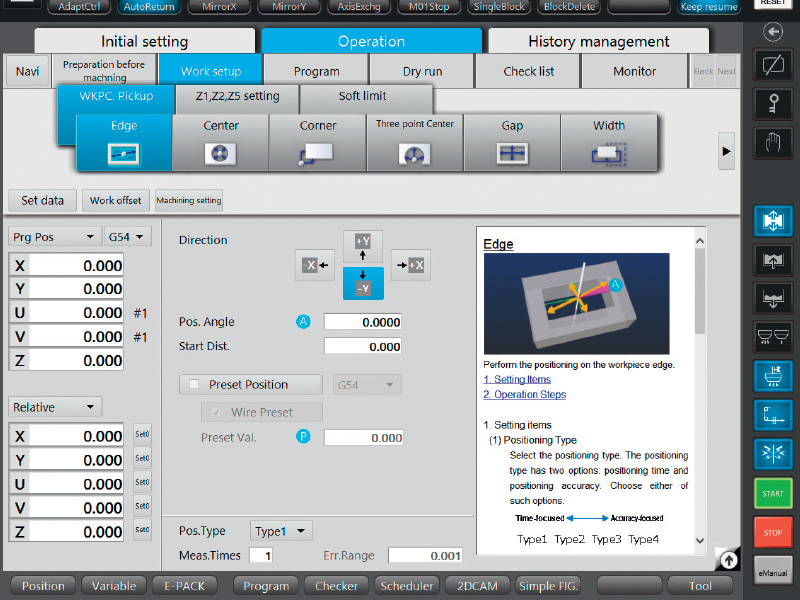

Automatic Renishaw probe on sleeve | Optional | |||

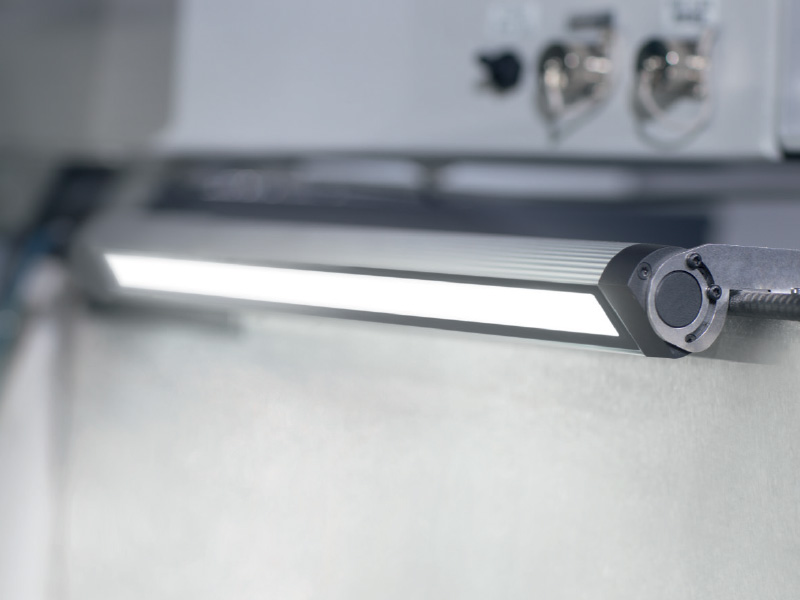

ERGO-LUX LED floodlights | Optional | |||
Tricolour status lamp | Optional | |||
Automatic dielectric water refilling | Optional | |||
Connection to external cooling system | Optional | |||
External signal output with relay circuit board | Optional | |||
Automatic filter switching system | n/a | Optional | n/a | Optional |
Optional Tools | MV1200S | MV2400S | MV2400S Z+ | MV4800S |
---|---|---|---|---|
Connect Kit | Optional | |||
3D CamMagic on-board | Optional | |||
mcAnywhere Service | Optional | |||
mcAnywhere Control/ mcAnywhere Control lite | Optional | |||
mcAnywhere Contact/ mcAnywhere Contact lite | Optional | |||
Tool package / automation solutions | Optional |
Stromanschluss: 3 Phasen 400 V/AC, PE, ± 10 %, 50/60 Hz, Absicherung min. 32 A träge Pneumatikanschluss: 5–7 kgf/cm3, 500–700 kpa, Luftmenge min. 75 l/min, 3/8″ Schlauchanschluss Die Erodieranlage sollte auf einem geeigneten harten Industrieboden, vorzugsweise verdichtetem Betonboden, aufgestellt werden. Nicht zum Leistungsumfang von Mitsubishi Electric gehören eventuell erforderlich werdende Abschirmmaßnahmen gemäß EMV-Richtlinie. Das Kühlaggregat enthält fluoriertes Treibhausgas R410A. Weitere Informationen finden Sie in der entsprechenden Bedienungsanleitung.
